Korg M1 display kit installation

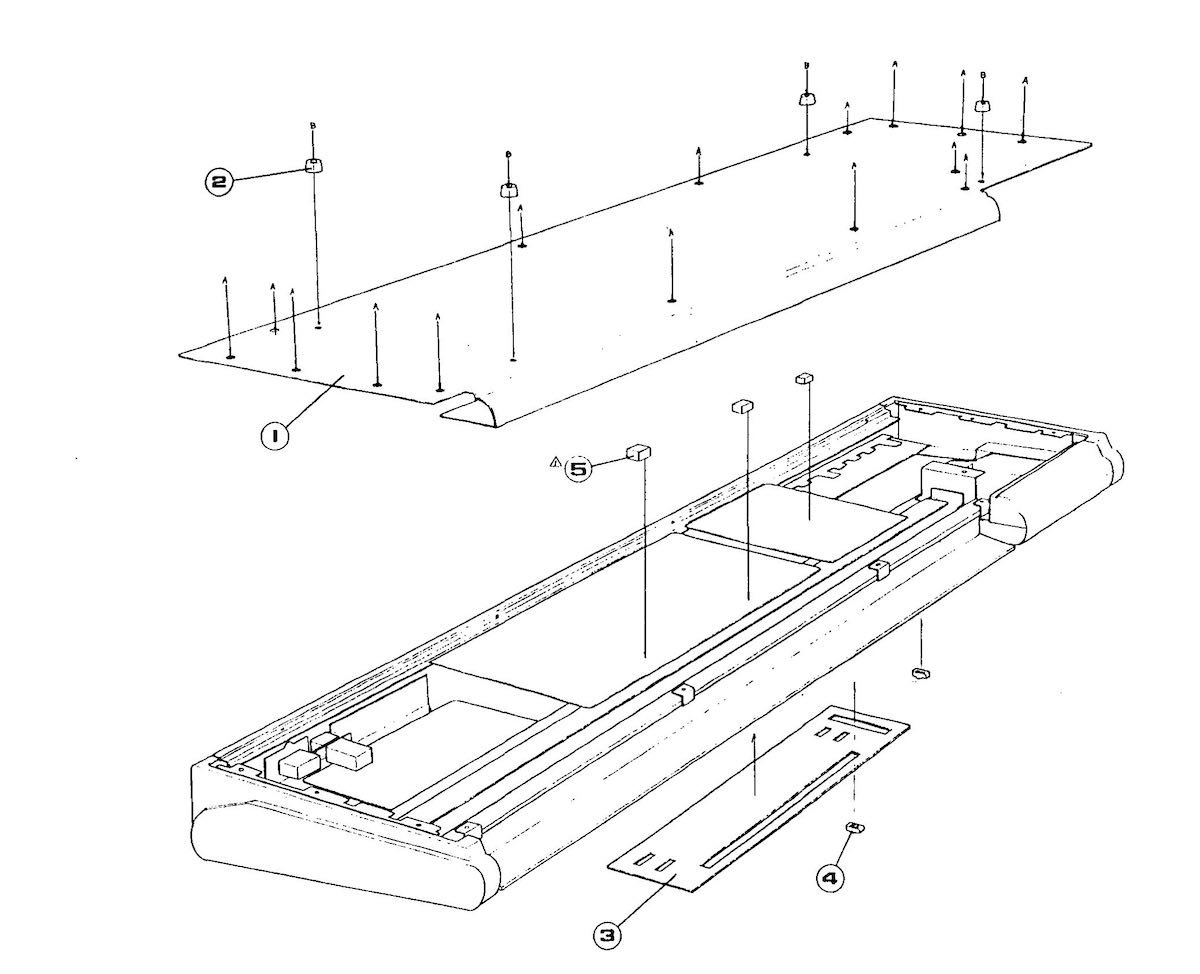

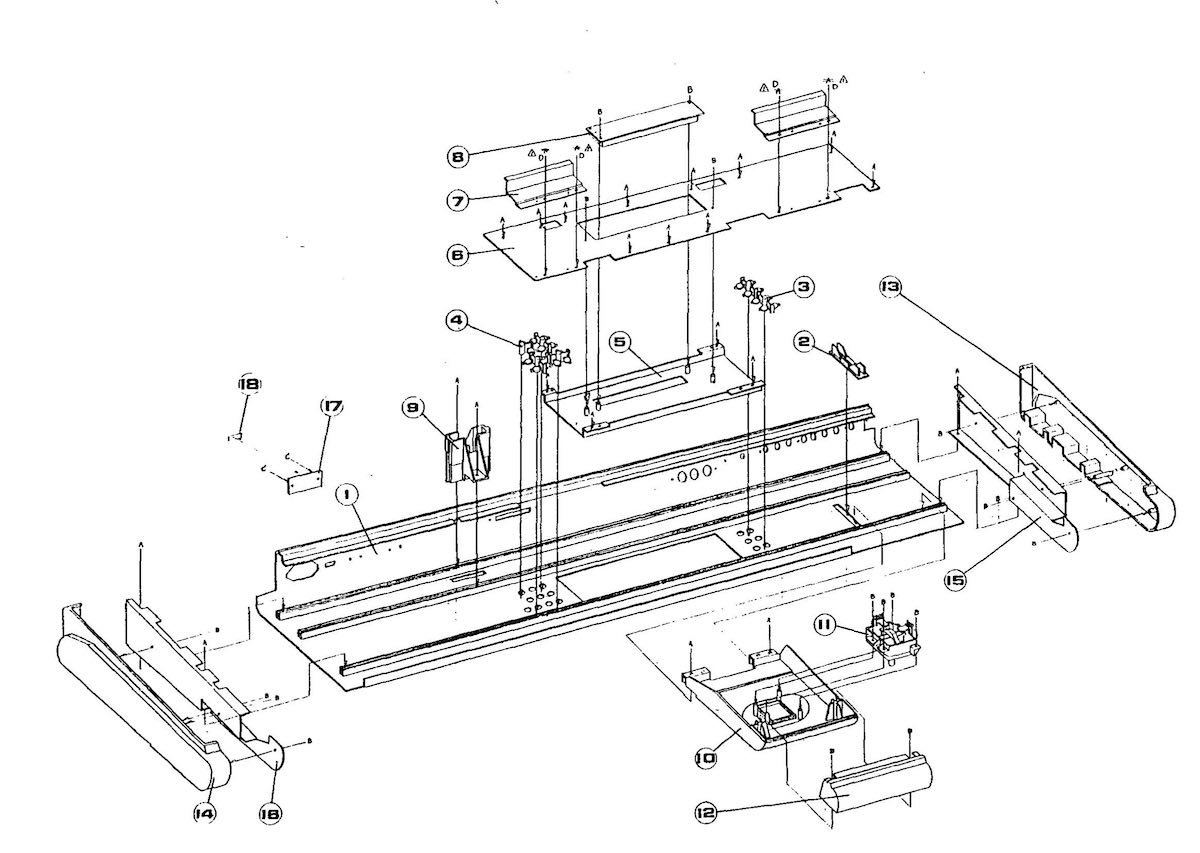

1) Unplug the device. Dissassembly.

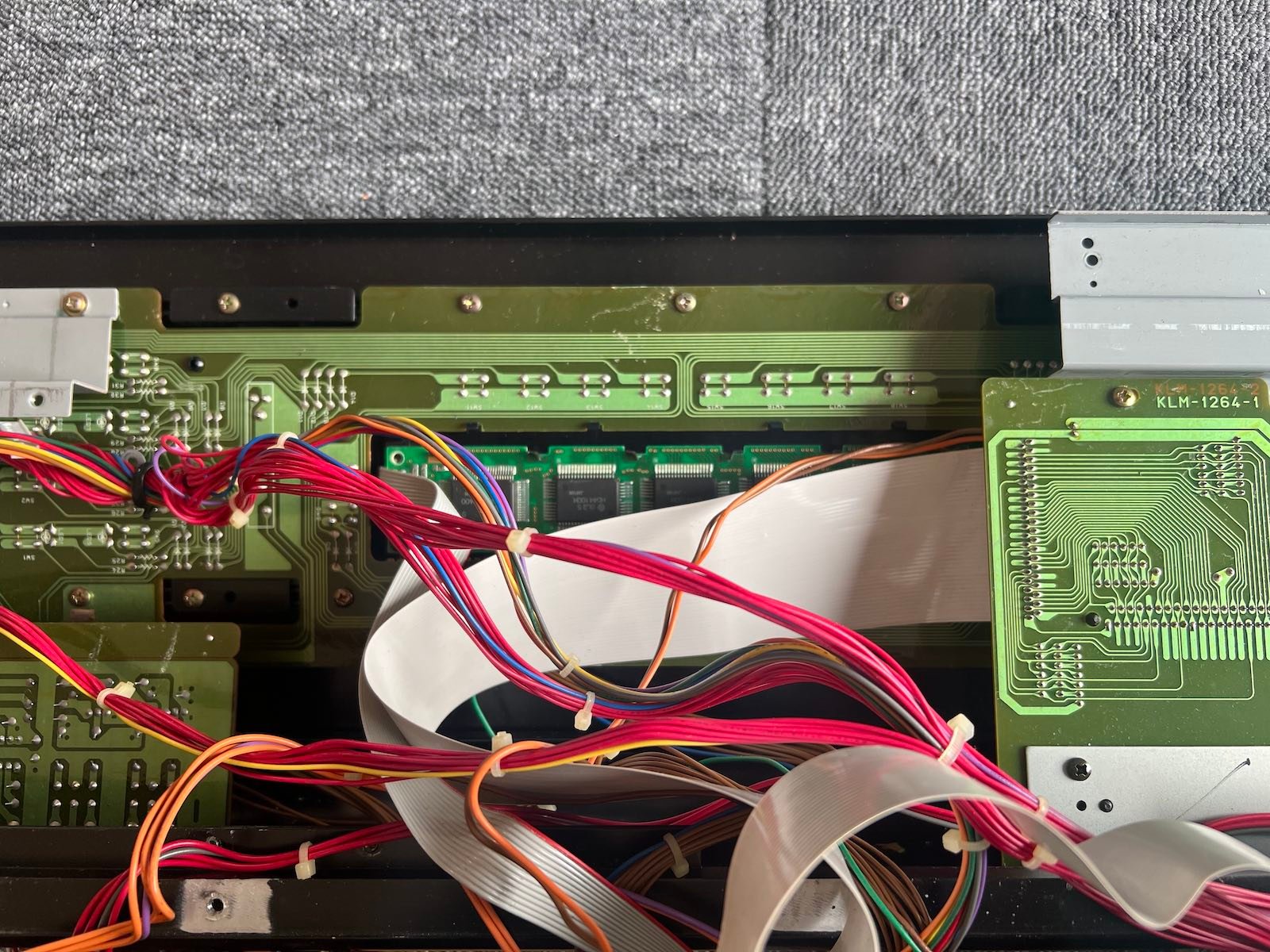

2) Remove the two pcb to access the original display.

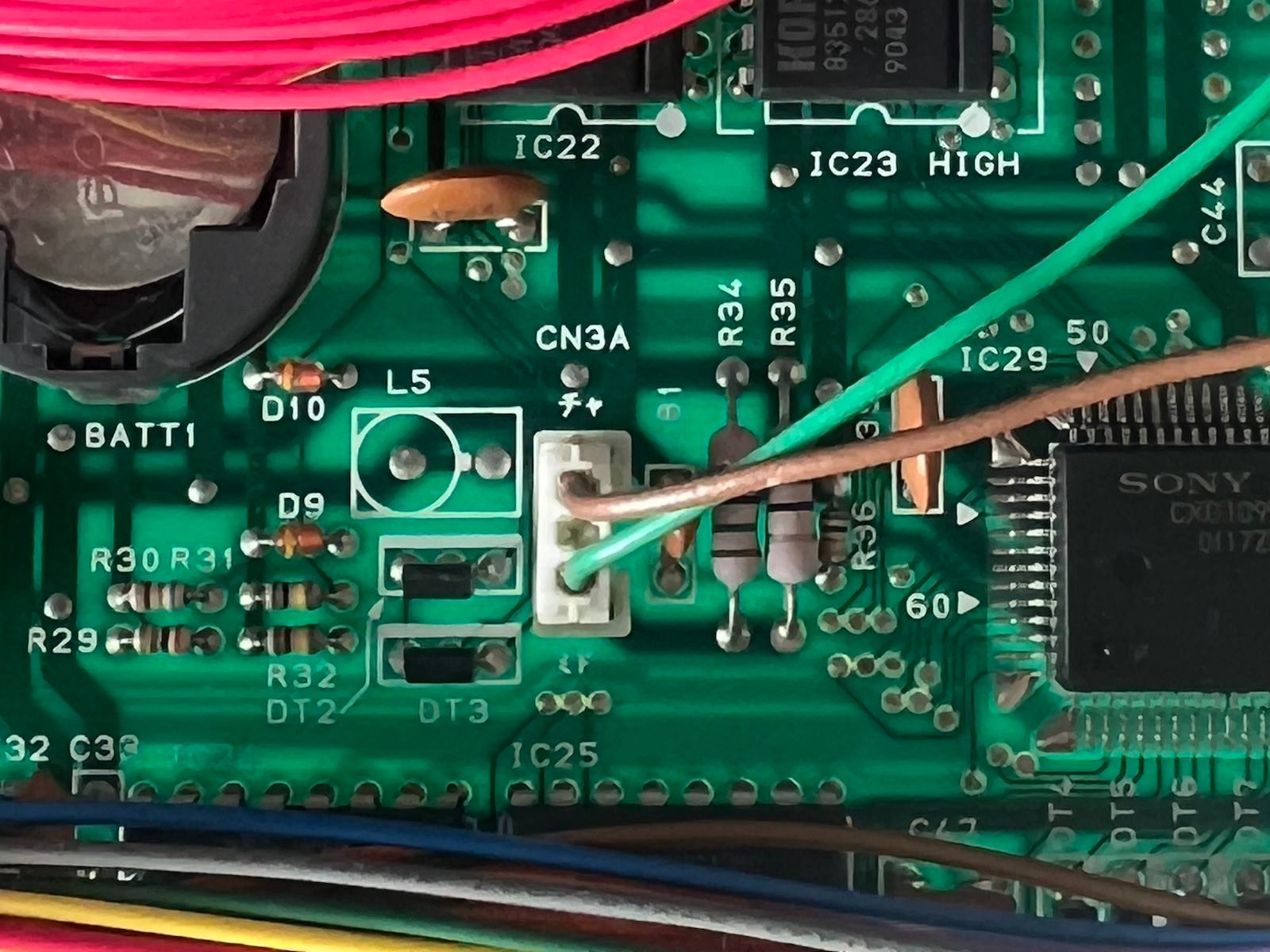

3) Remove the original display, unplug its connectors. The 2-wires connector will not be reused (I had to cut the wires on mine to disassembly).

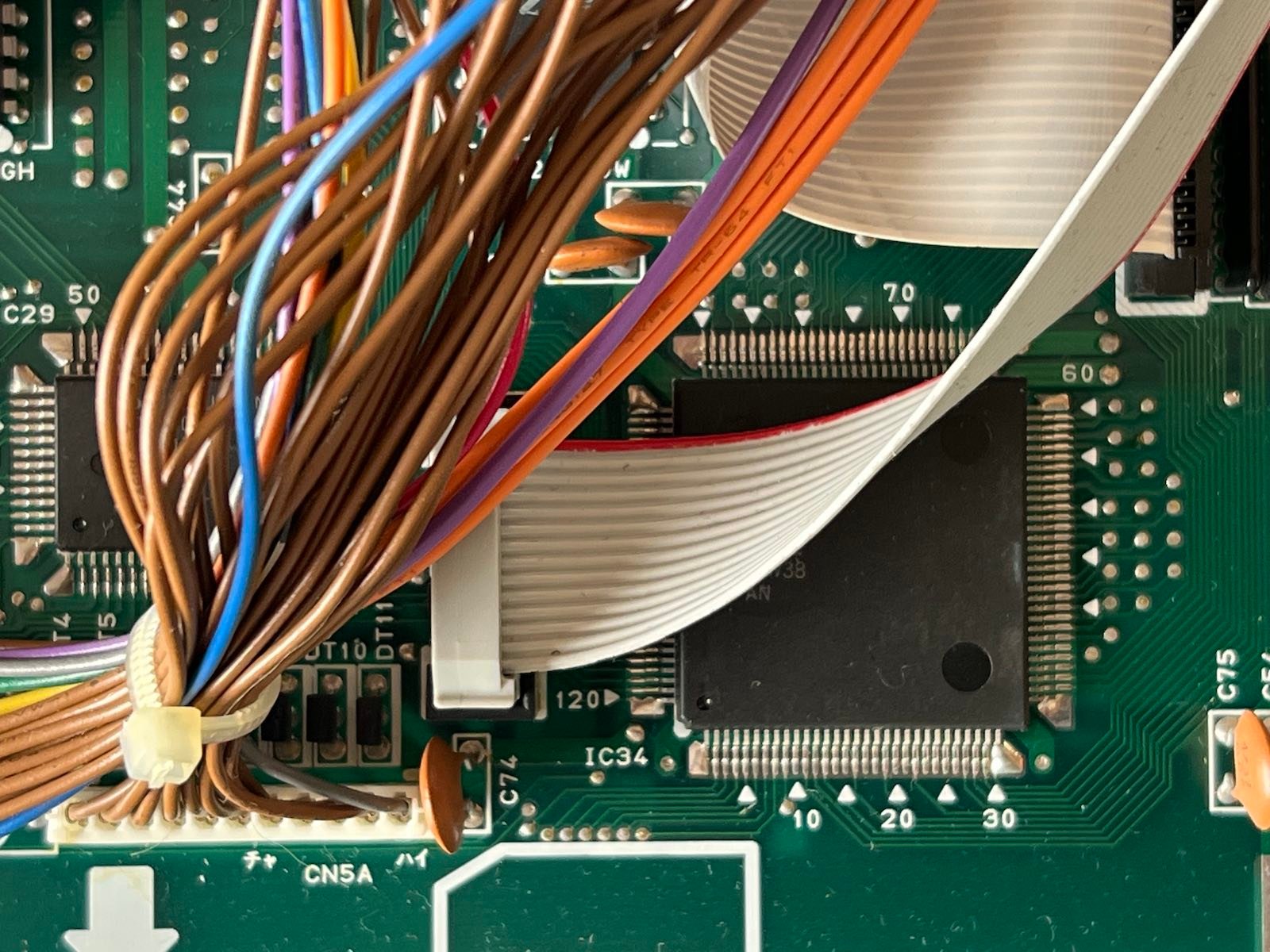

4) Replace the old screen with the new one, reusing the same screws. Plug the connector into the motherboard.

5) go back up. If necessary, adjust the contrast at the back of the keyboard.
