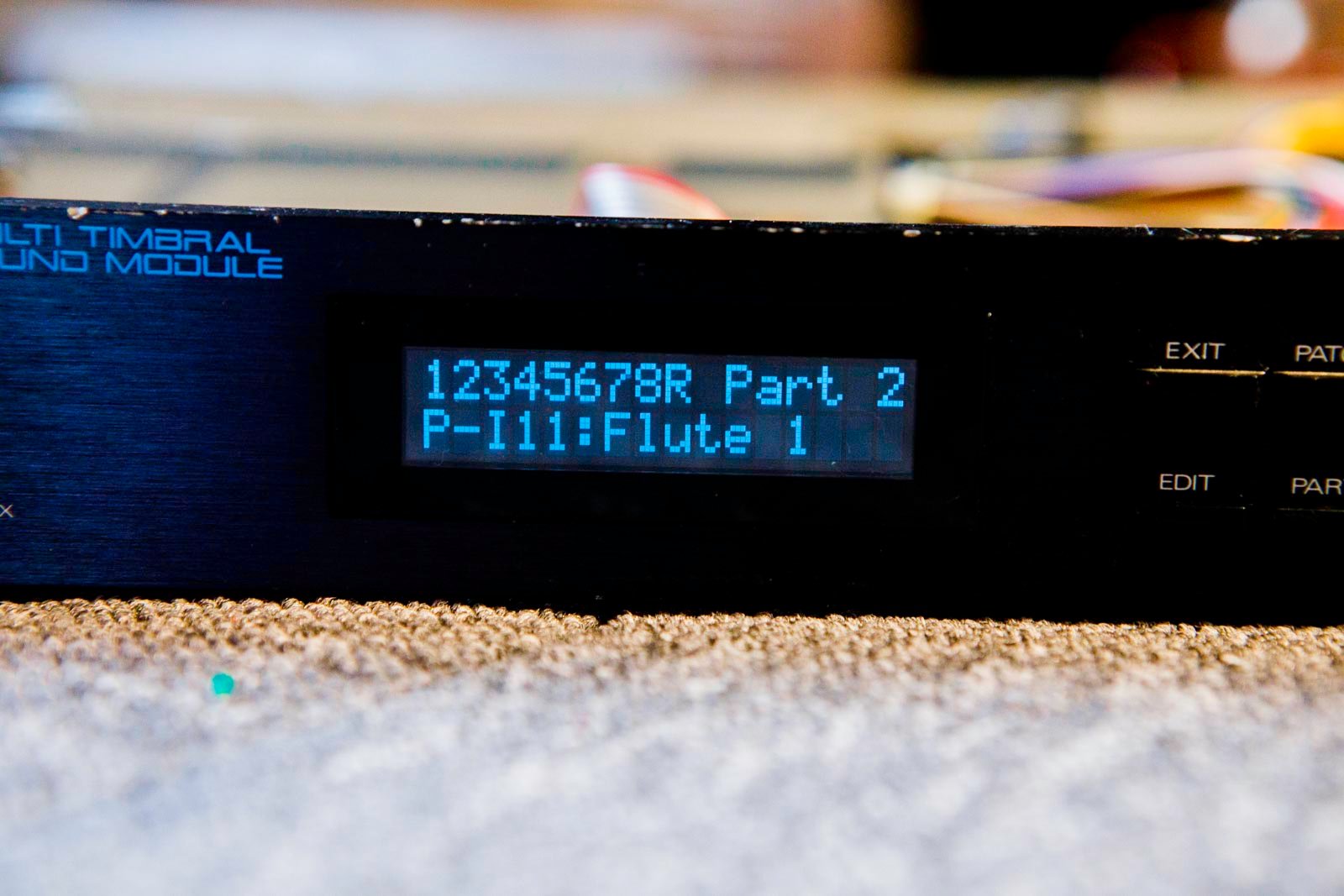

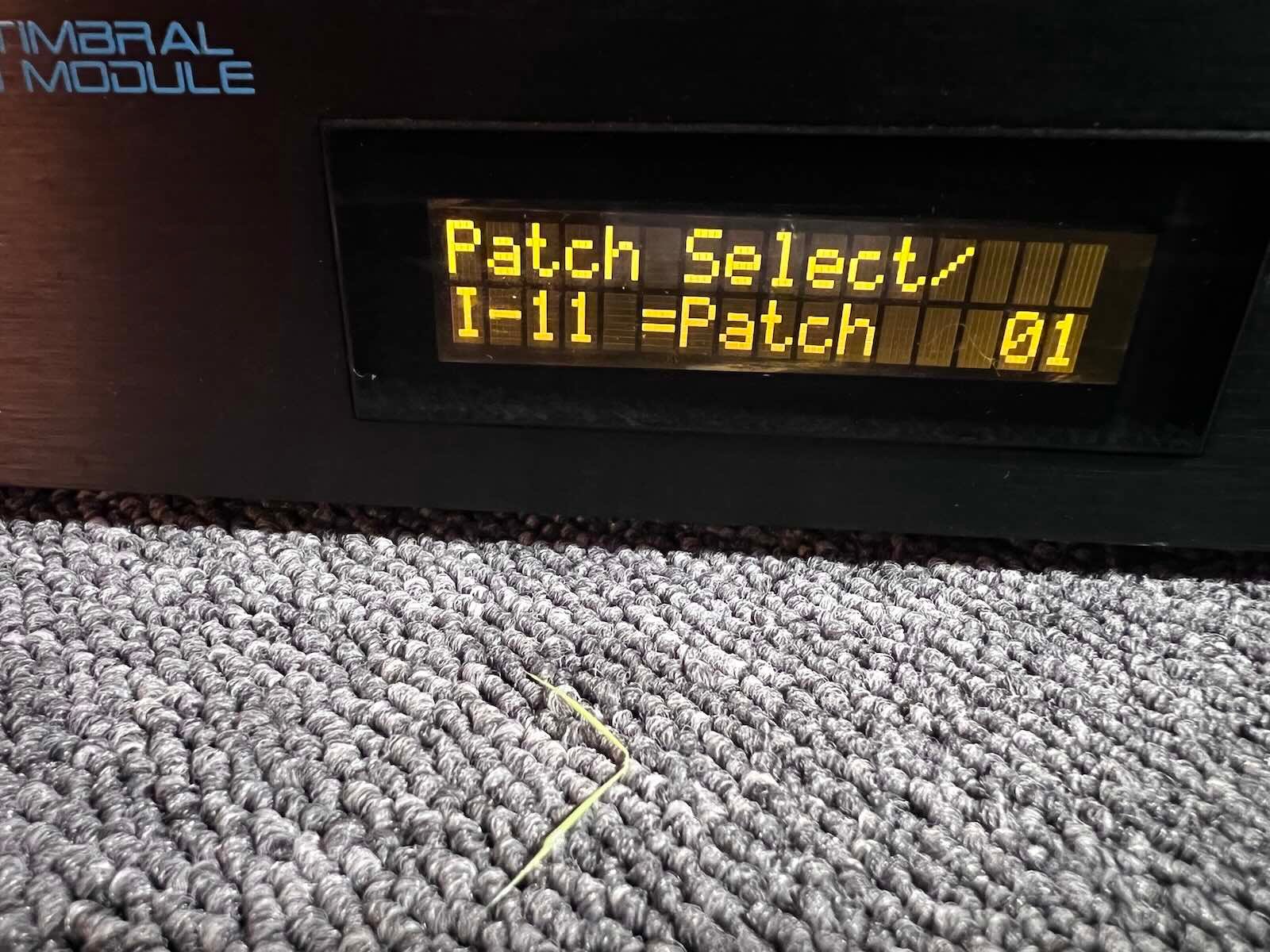

Roland D-110 backlit display kit installation

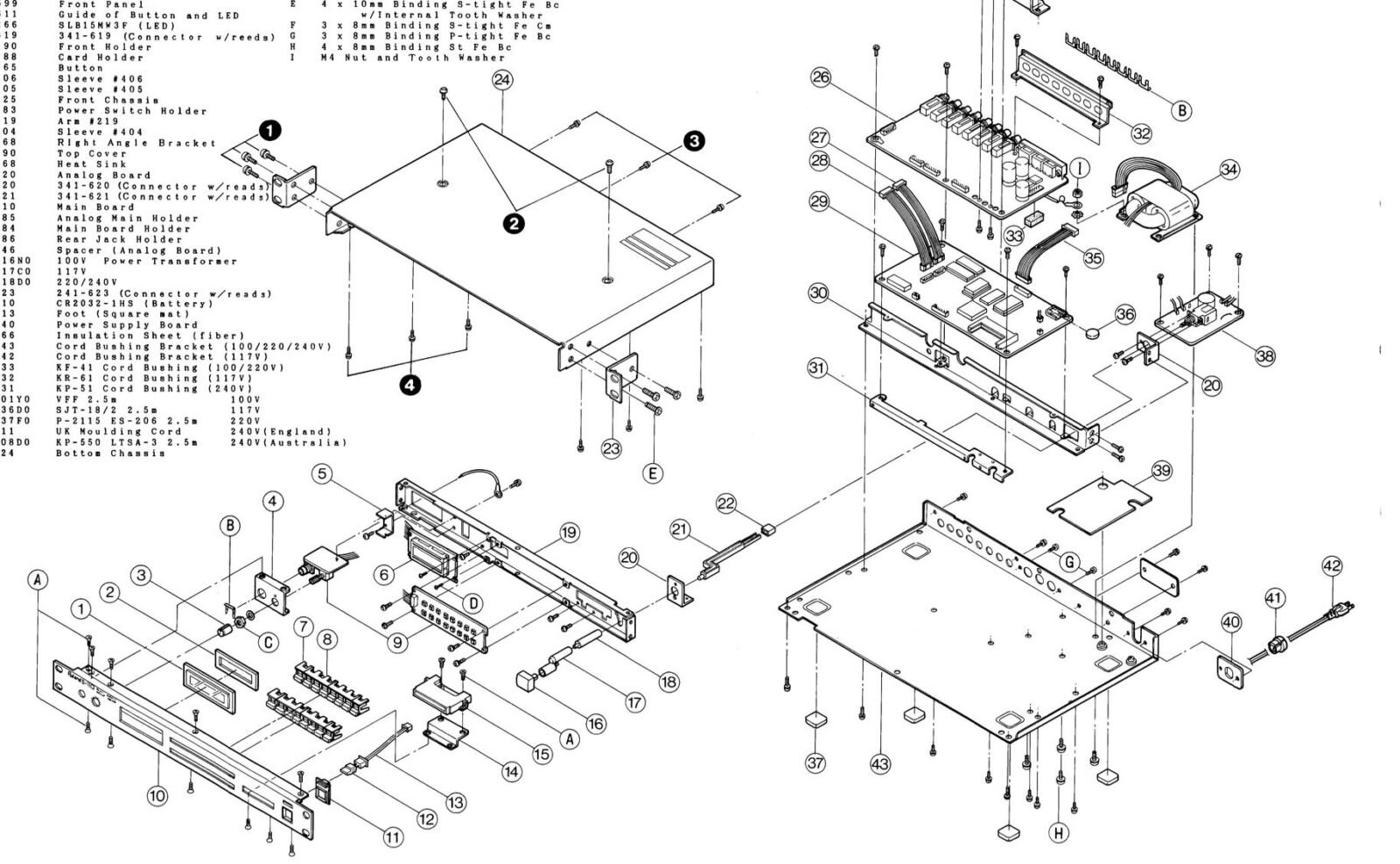

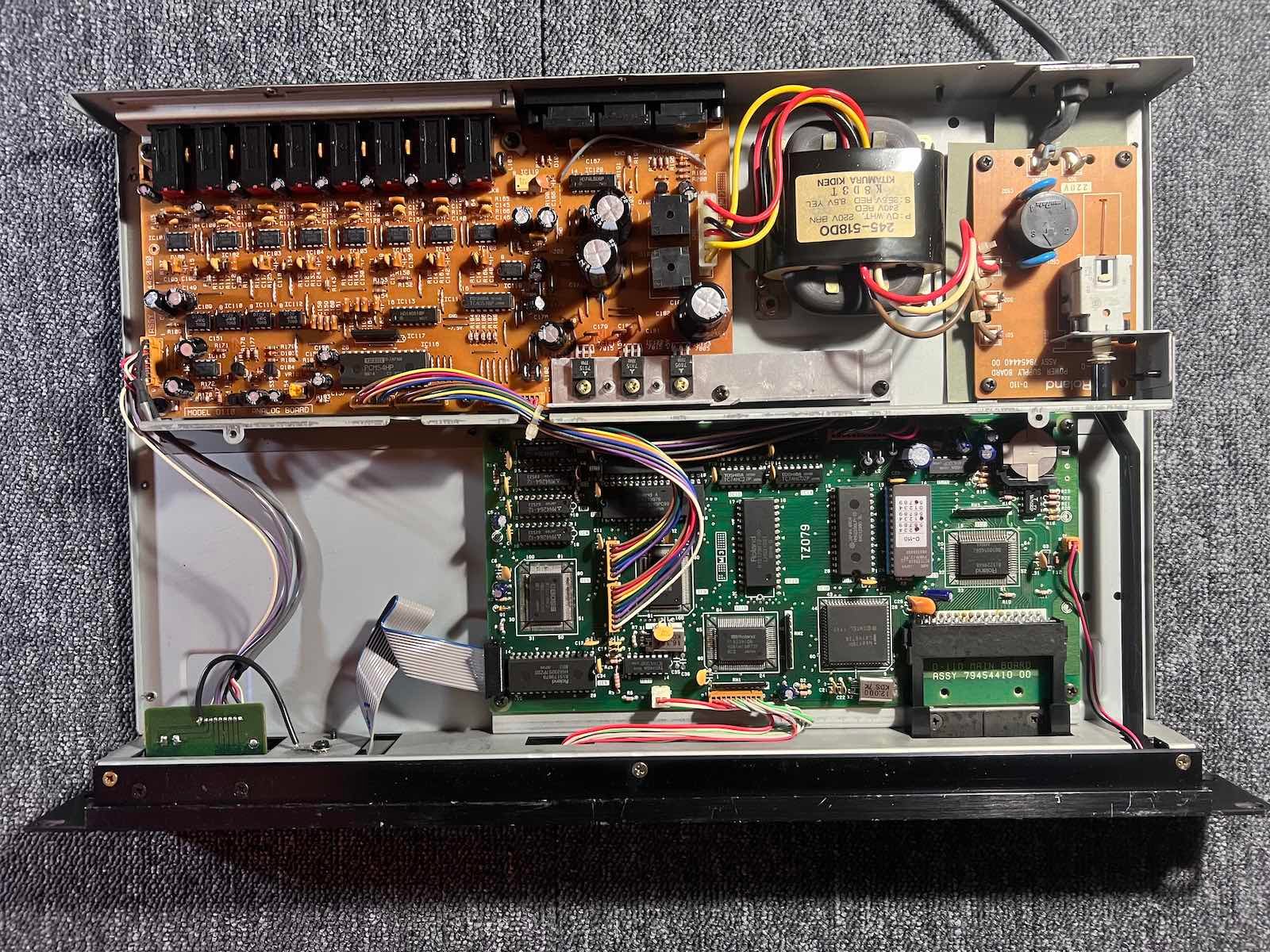

1) Remove the top cover. There are screws to remove on top, underneath, on the sides, and behind.

2) Remove the front black panel (screws on top and underneath)

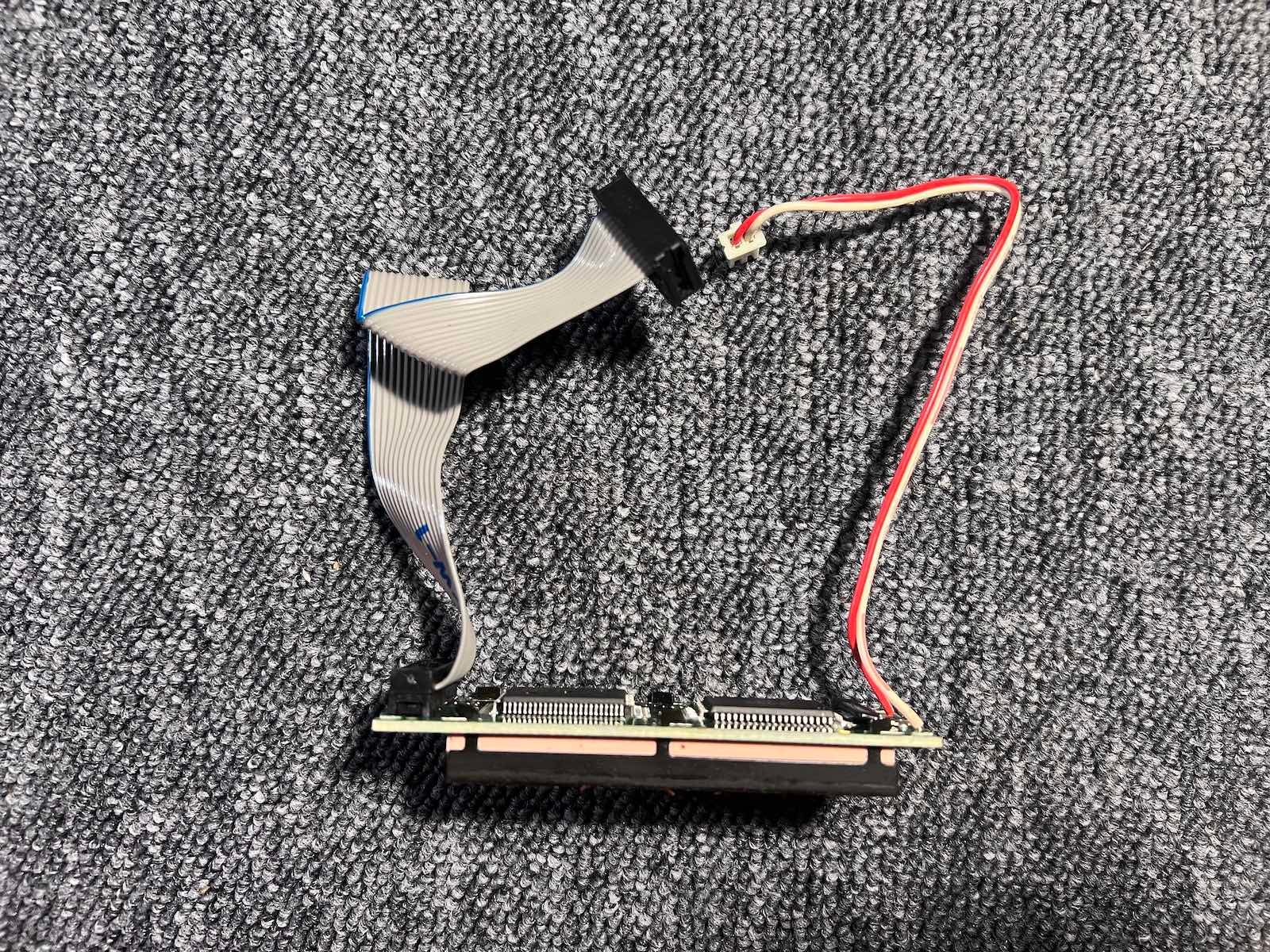

3) Disconnect both display connectors. Remove the original display (2 small screws). If necessary, remove any disintegrated foam from the panel.

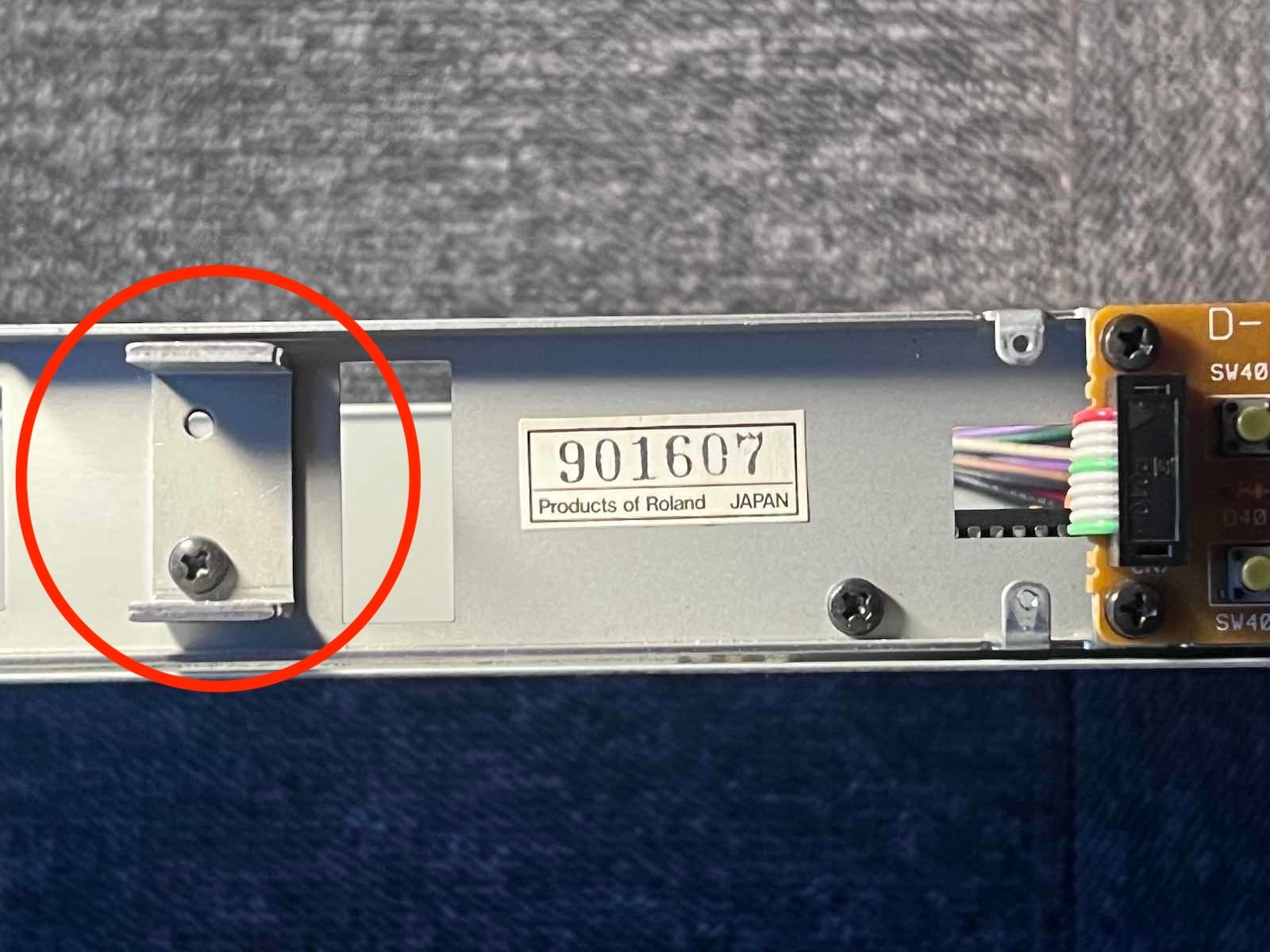

4) Remove the display bracket, it will no longer be needed. (2 screws)

5) pass the flat cable

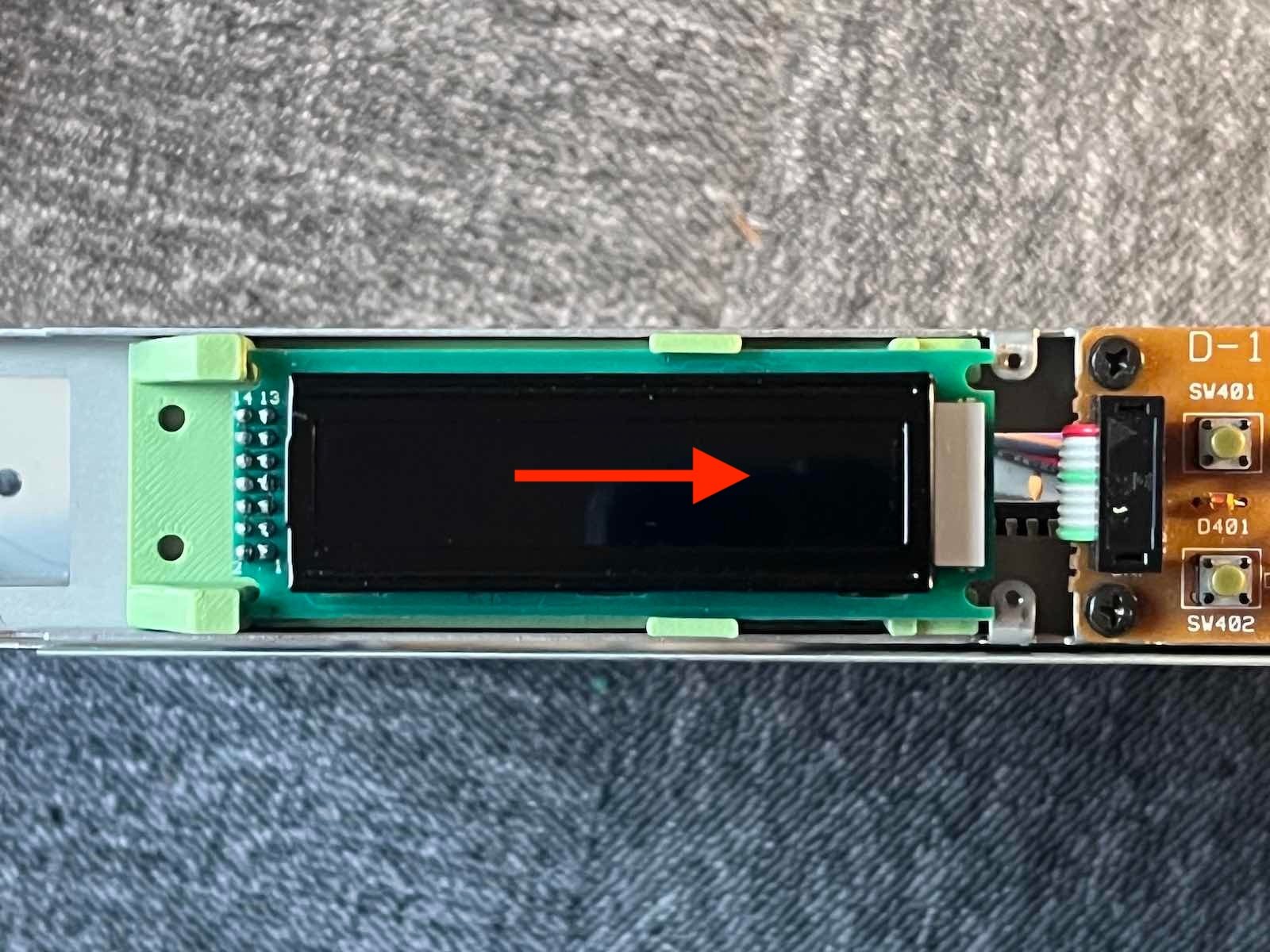

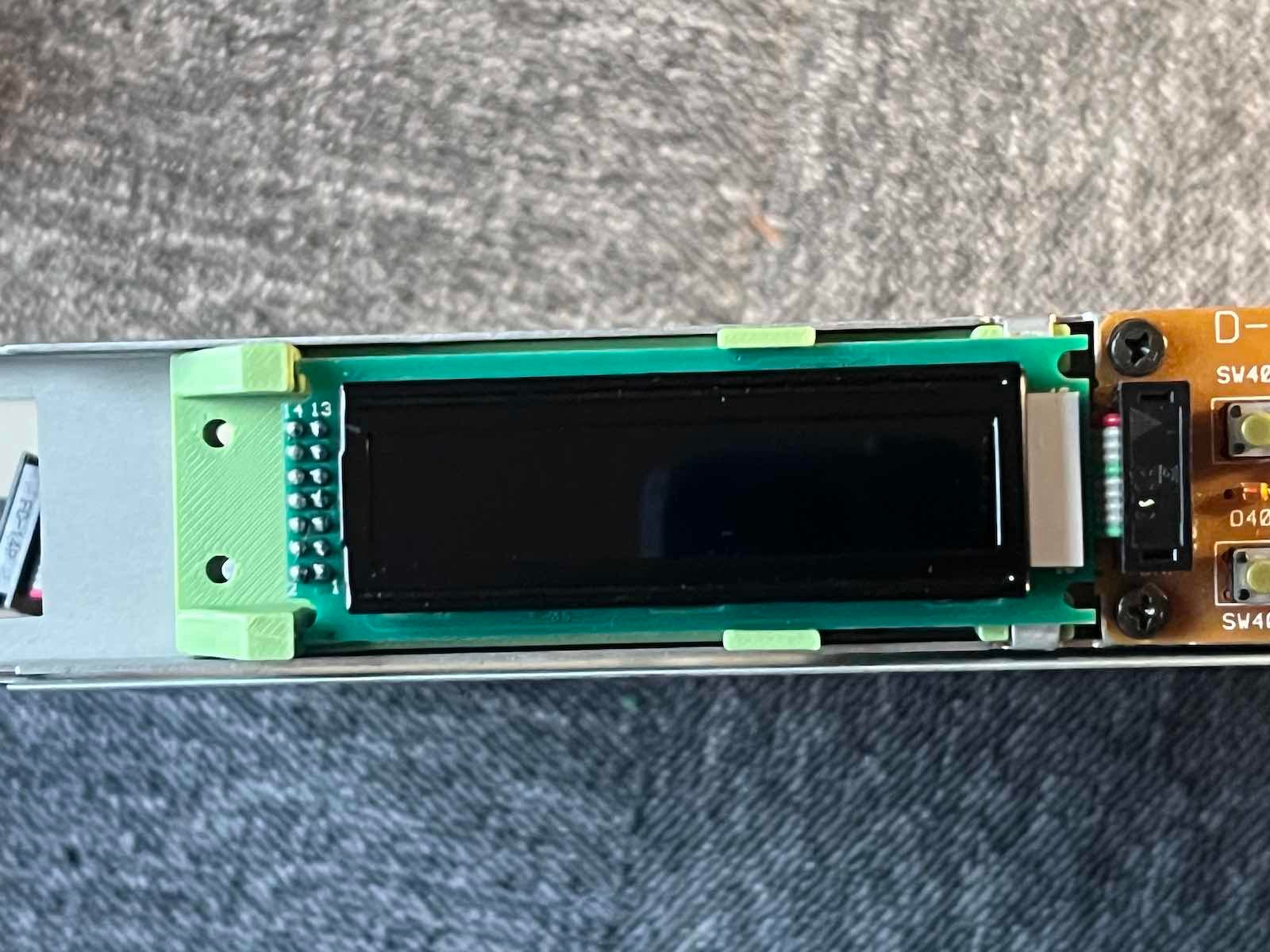

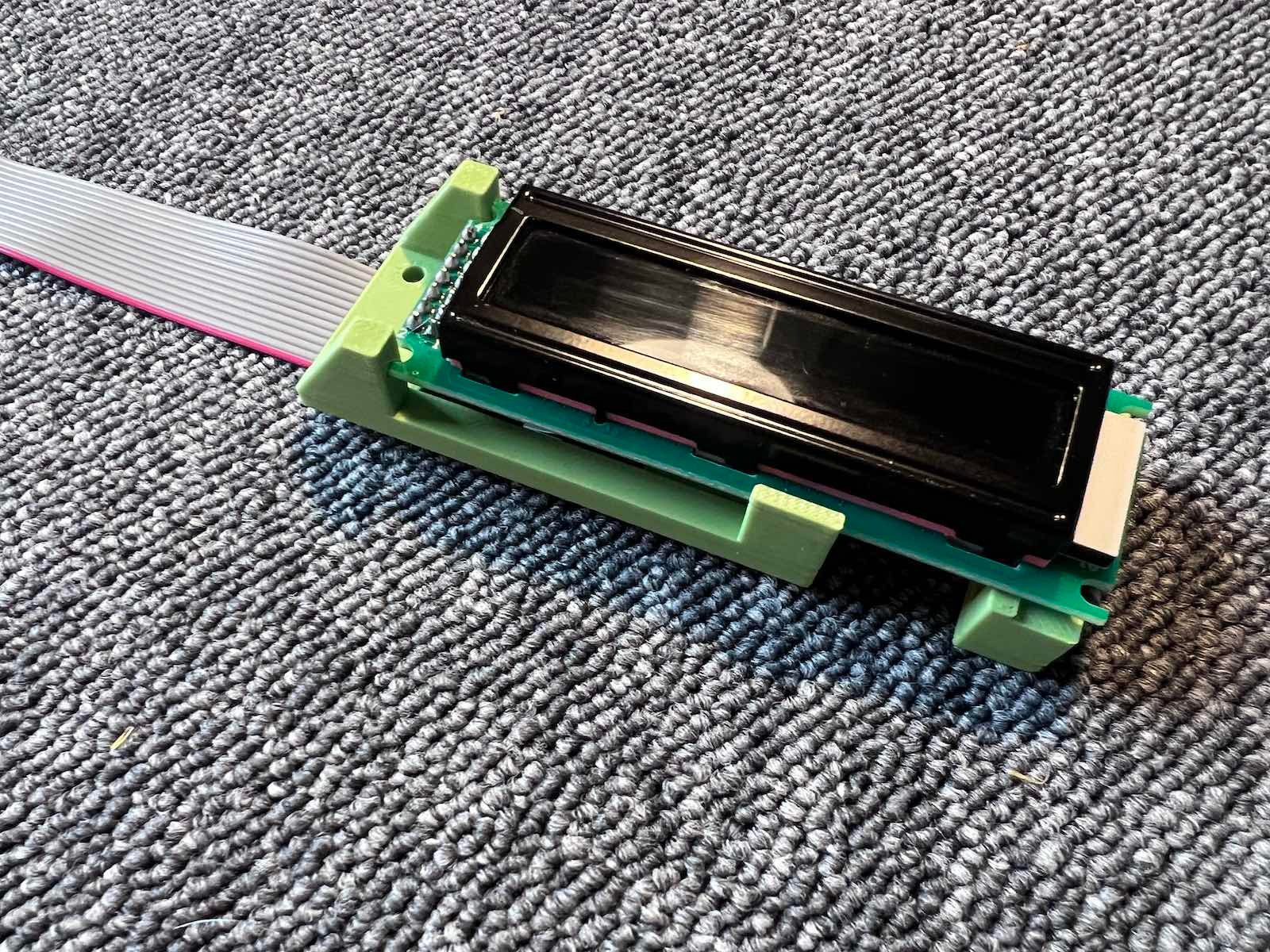

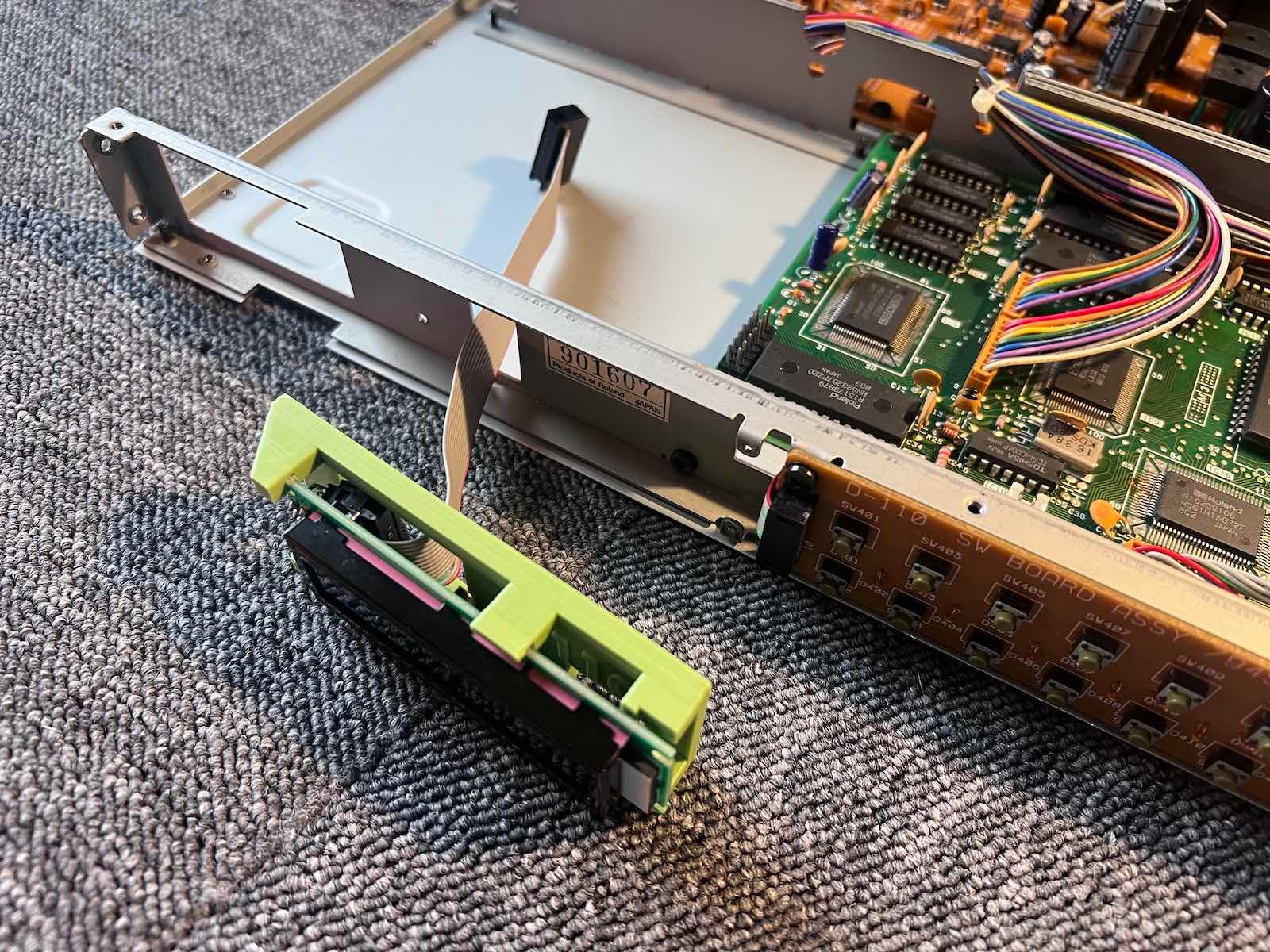

6) Position the new display kit and slide it to the right.

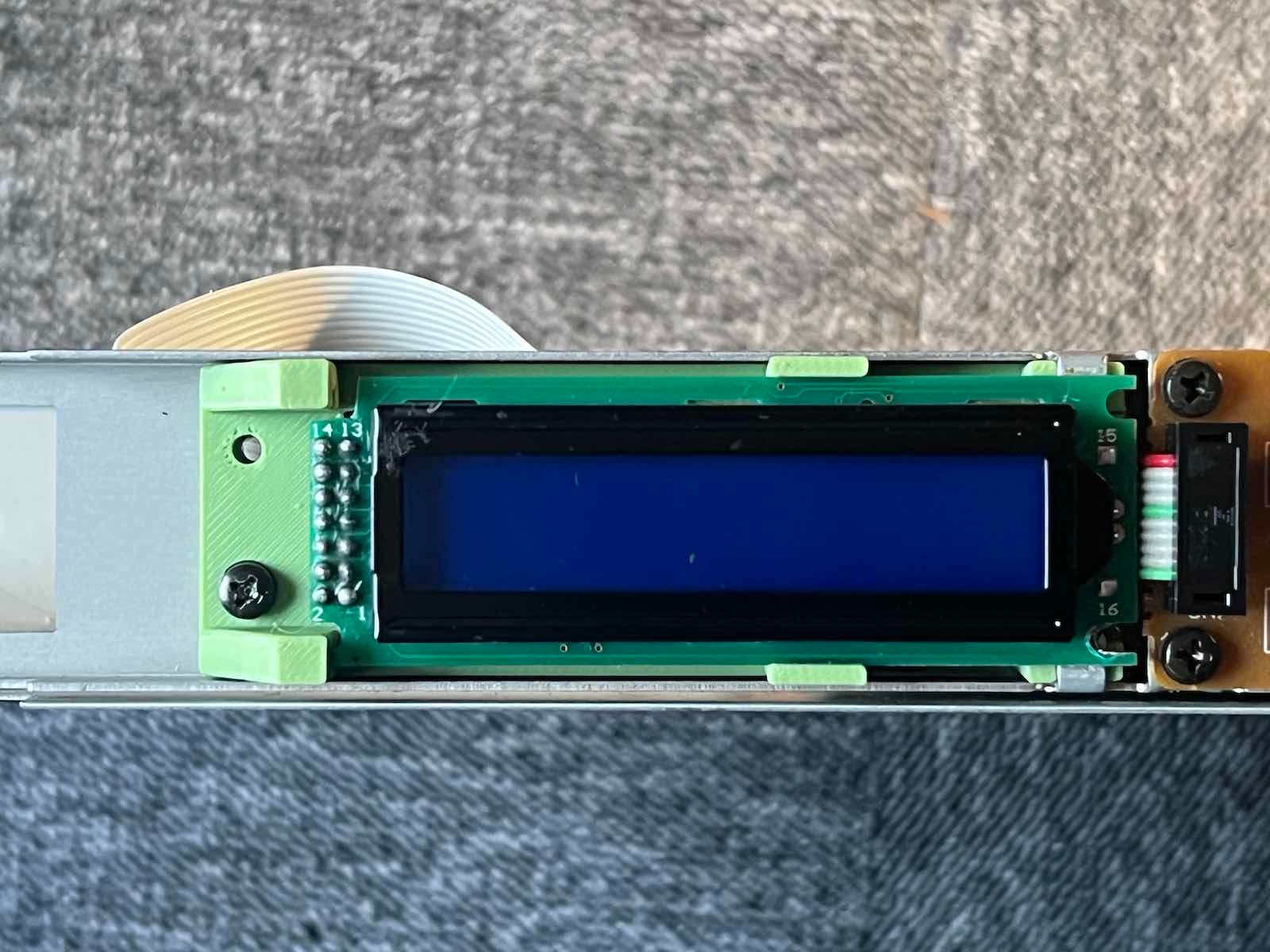

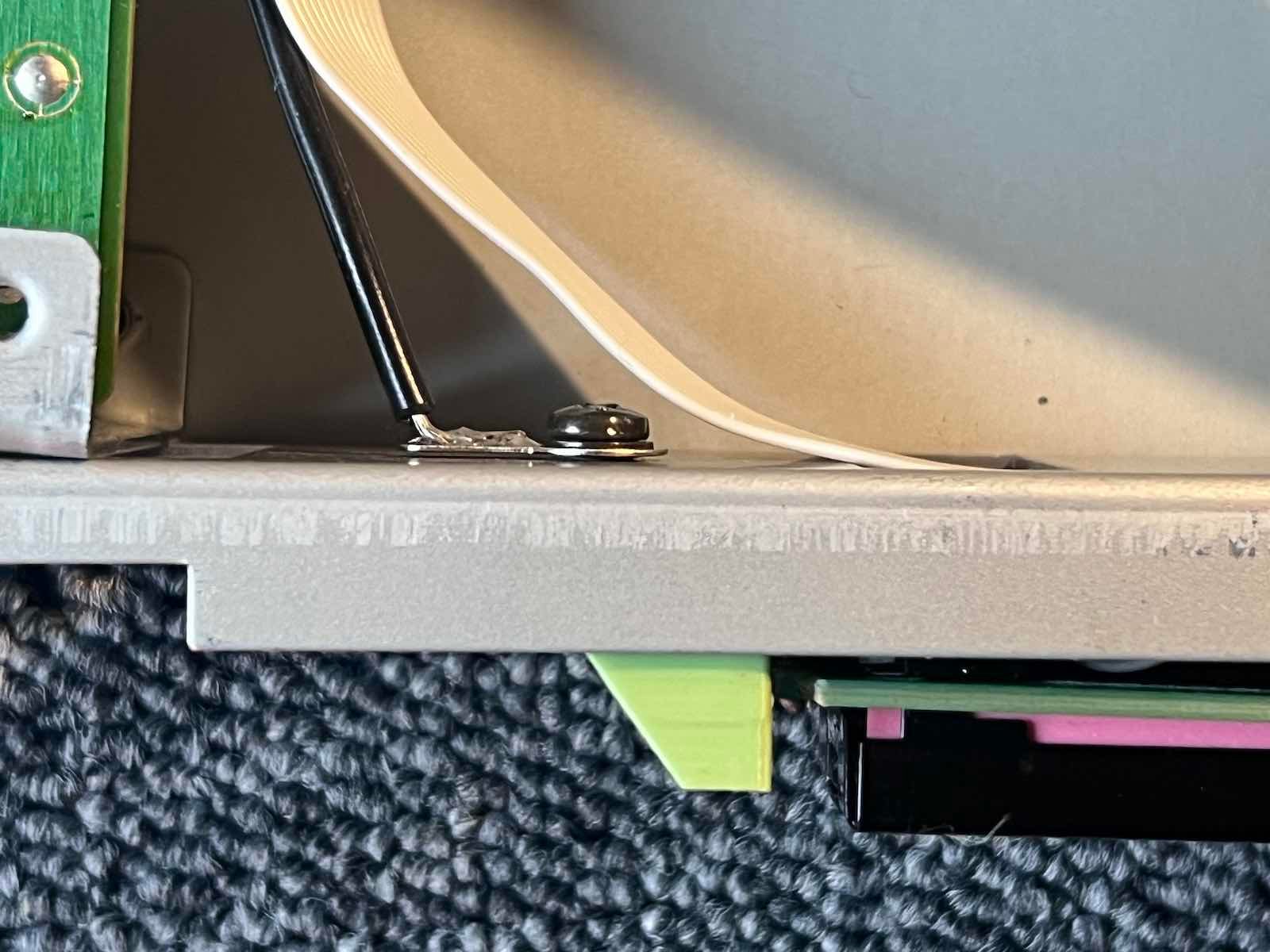

7) Screw the new display bracket on using the same screws as the old bracket (one screw in front, one in back).

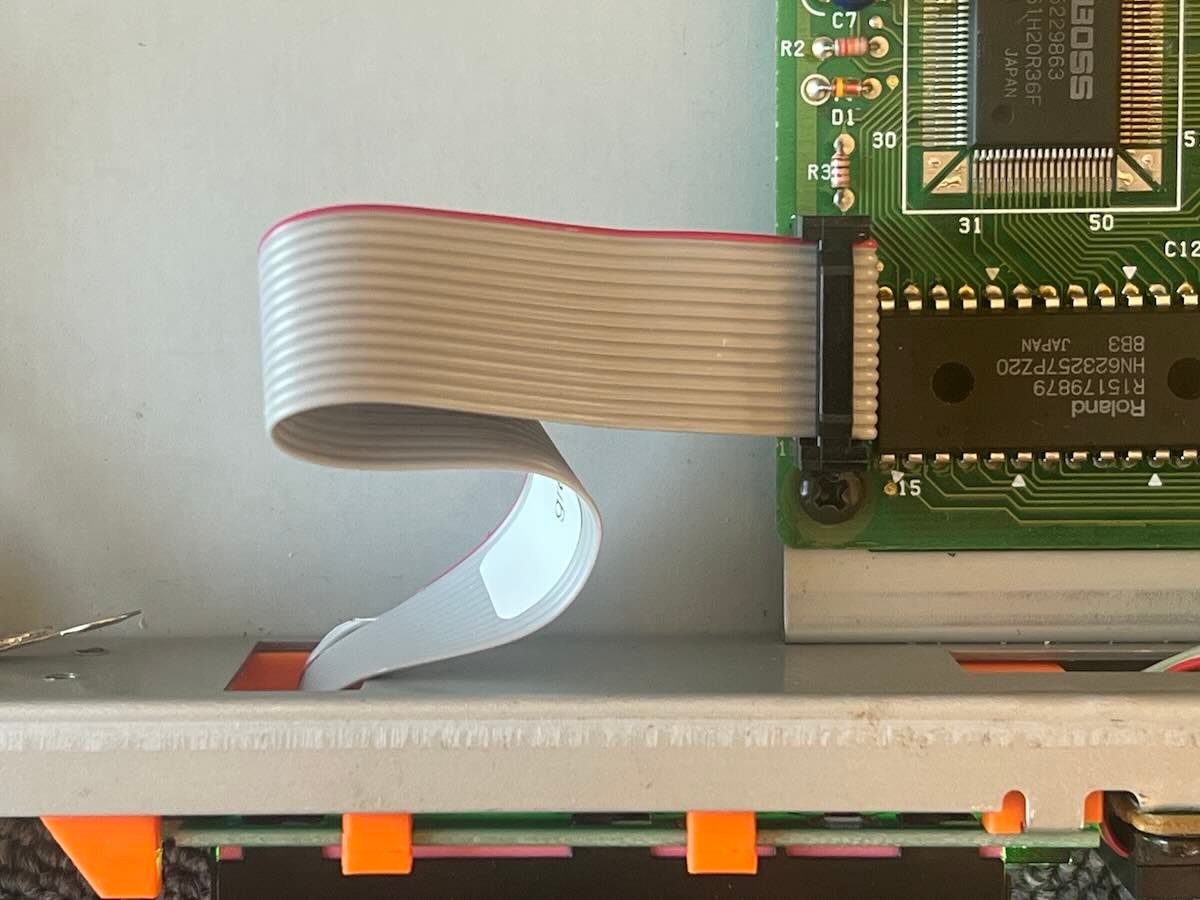

8) Connect the flat cable. Go back up
