Roland D-50 display kit installation

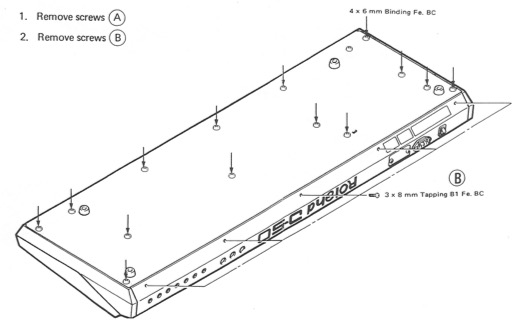

1) Unplug the device. Dissassembly. There are screws to remove on bottom, and behind.

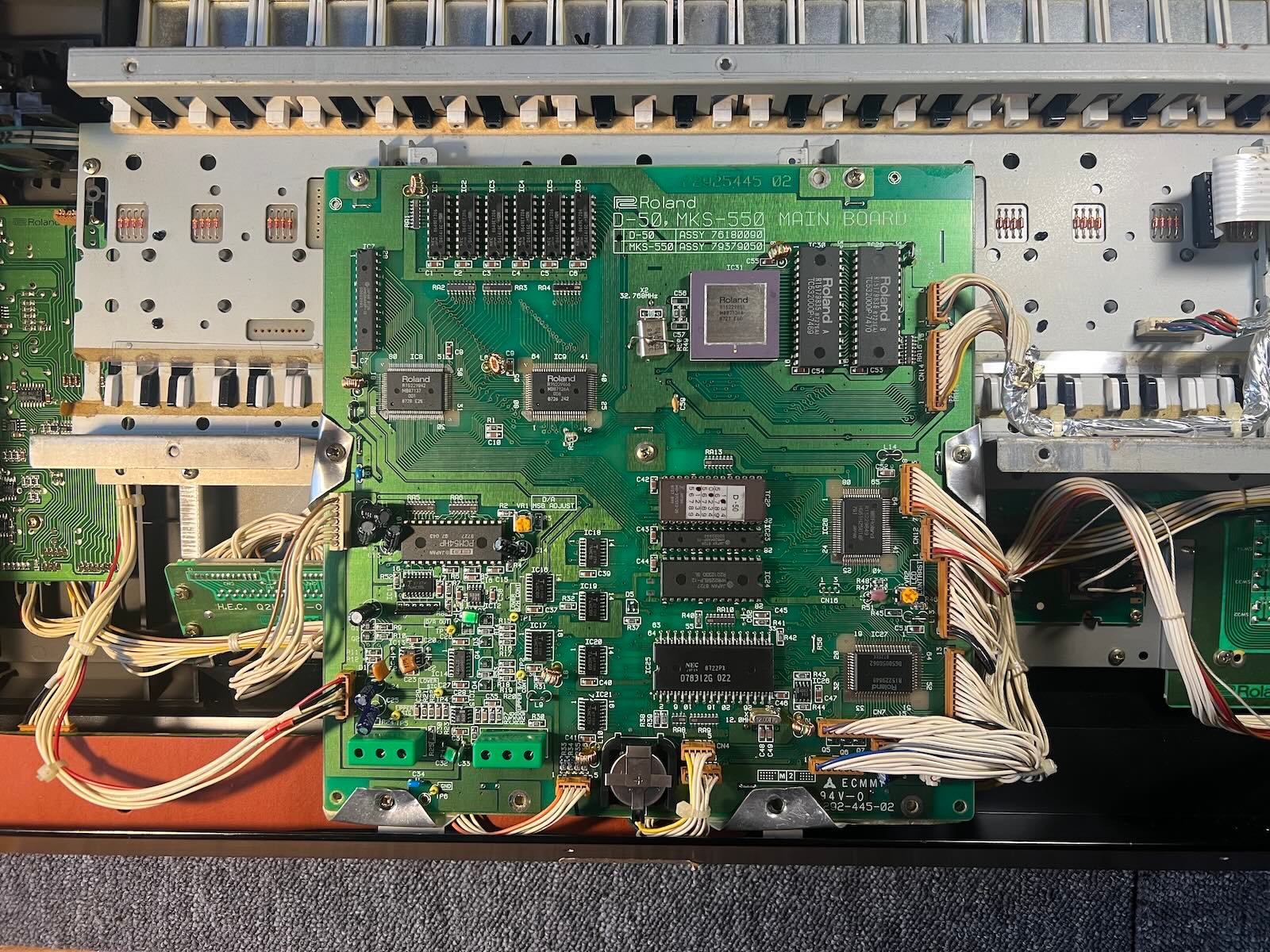

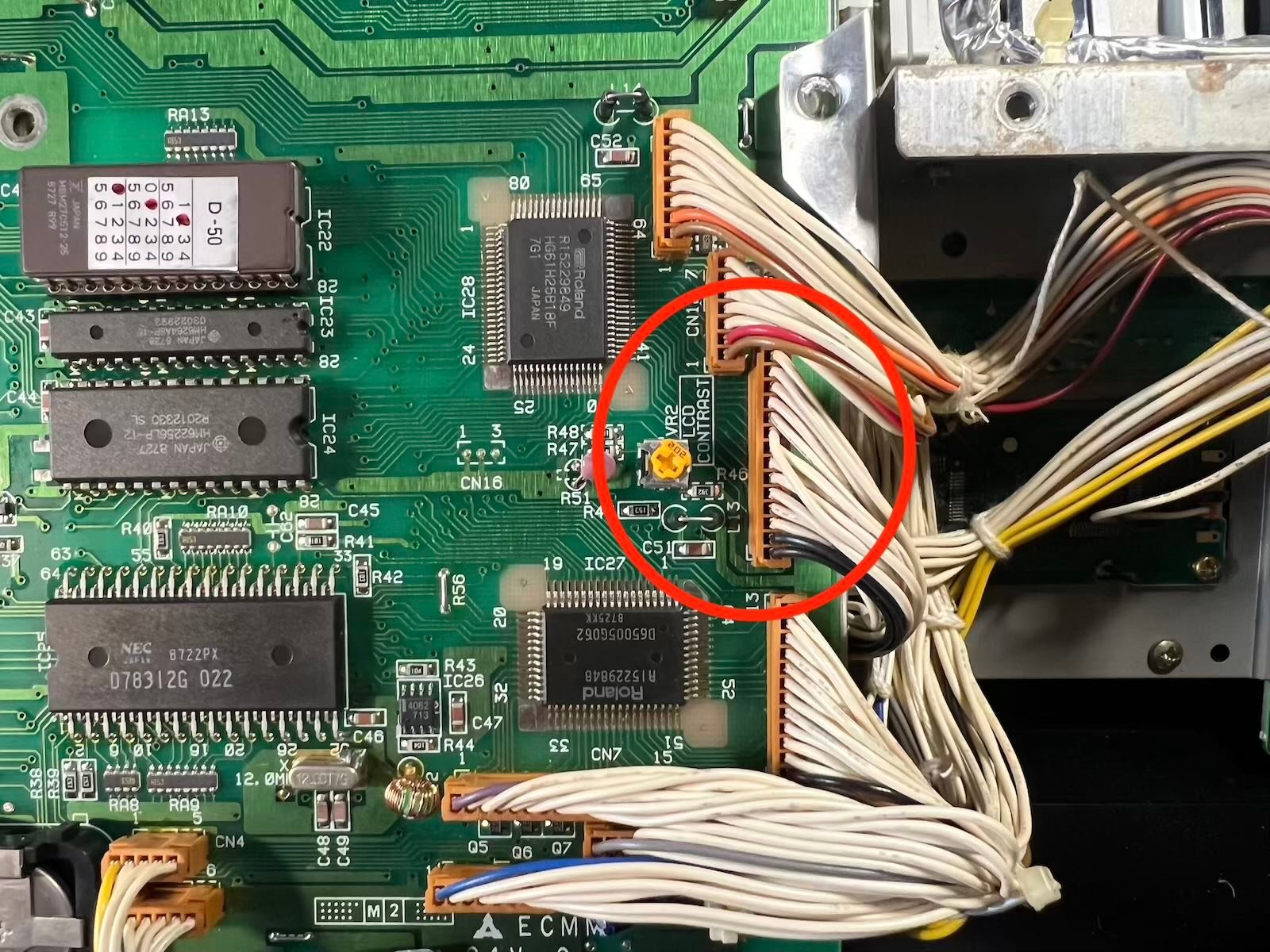

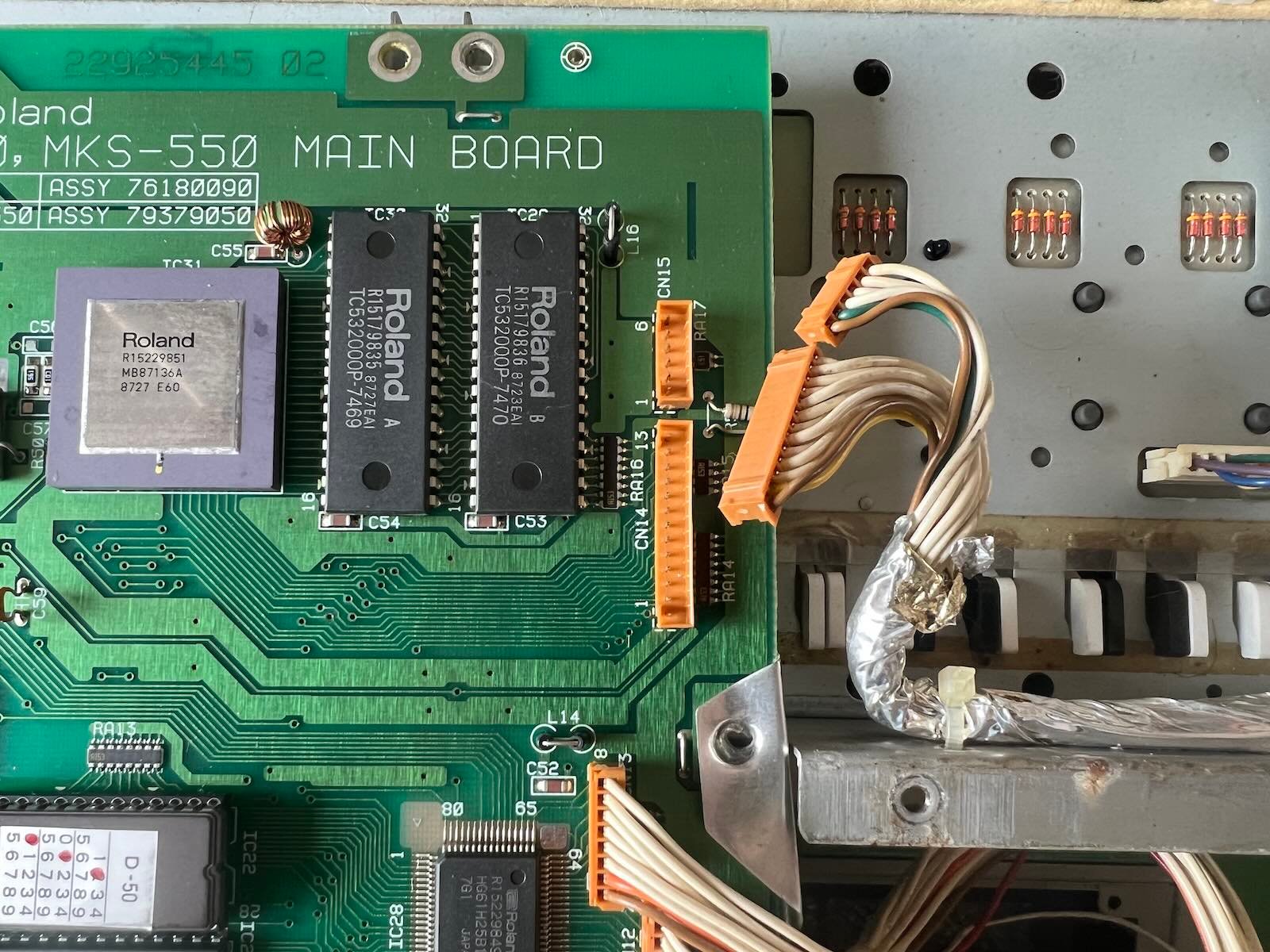

2) Unplug the 2 upper connectors (in order to remove the pcb), and unplug the display connector.

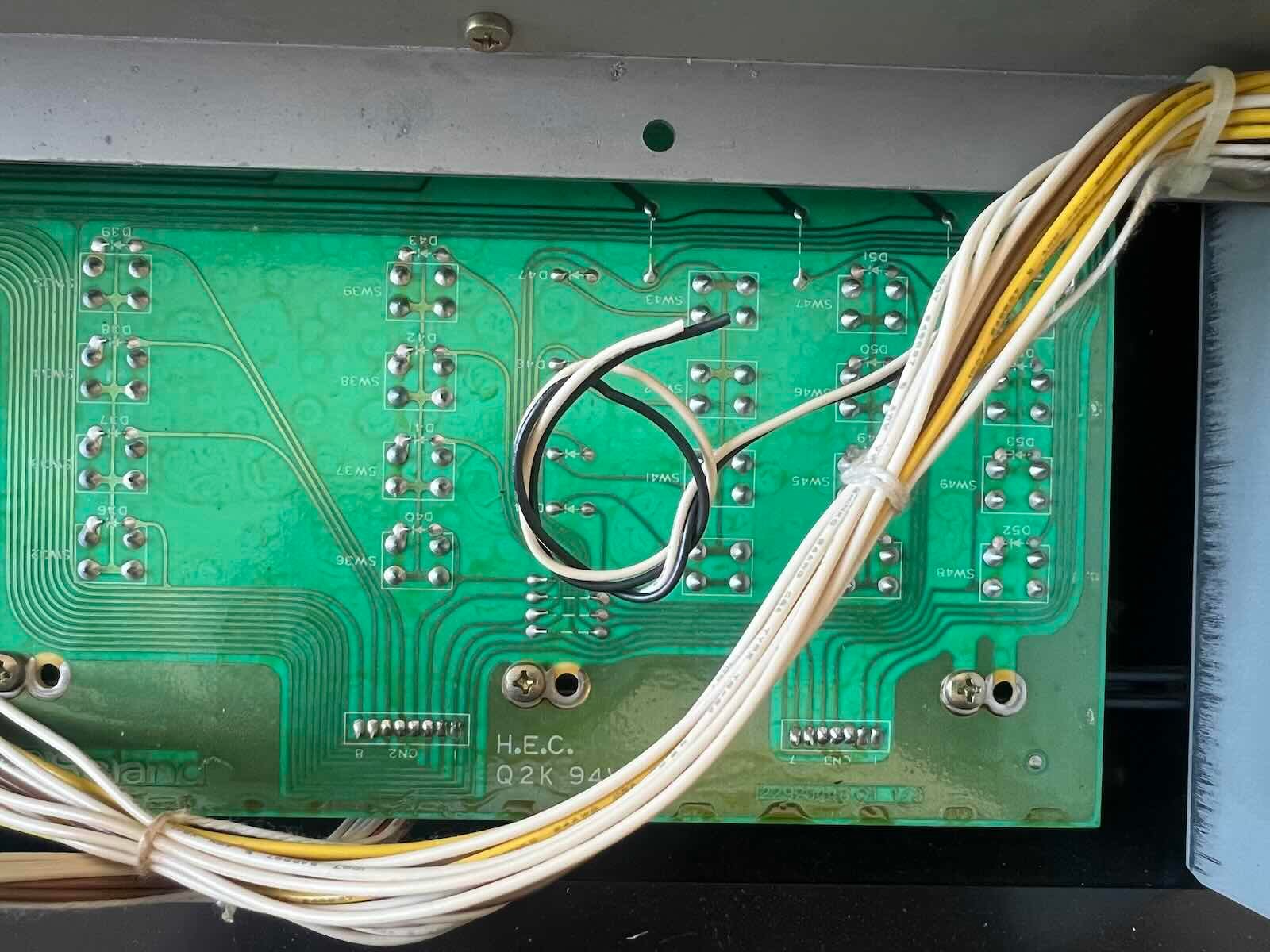

3) remove the pcb screws. Remove the pcb to access the display.

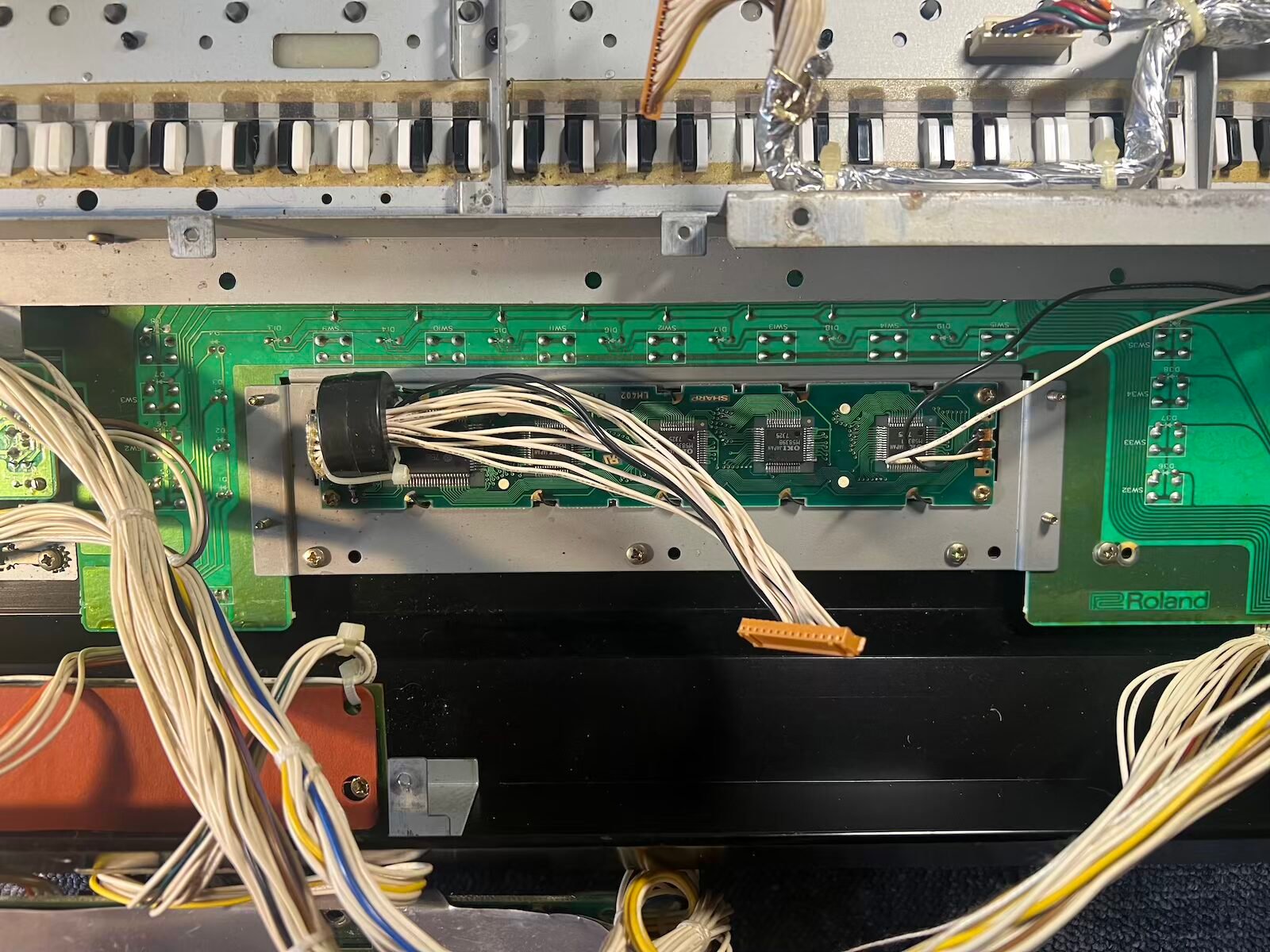

4) Remove the original screen. Unscrew the 4 screws. Cut 2 power wires from the original display, they won’t be necessary anymore.

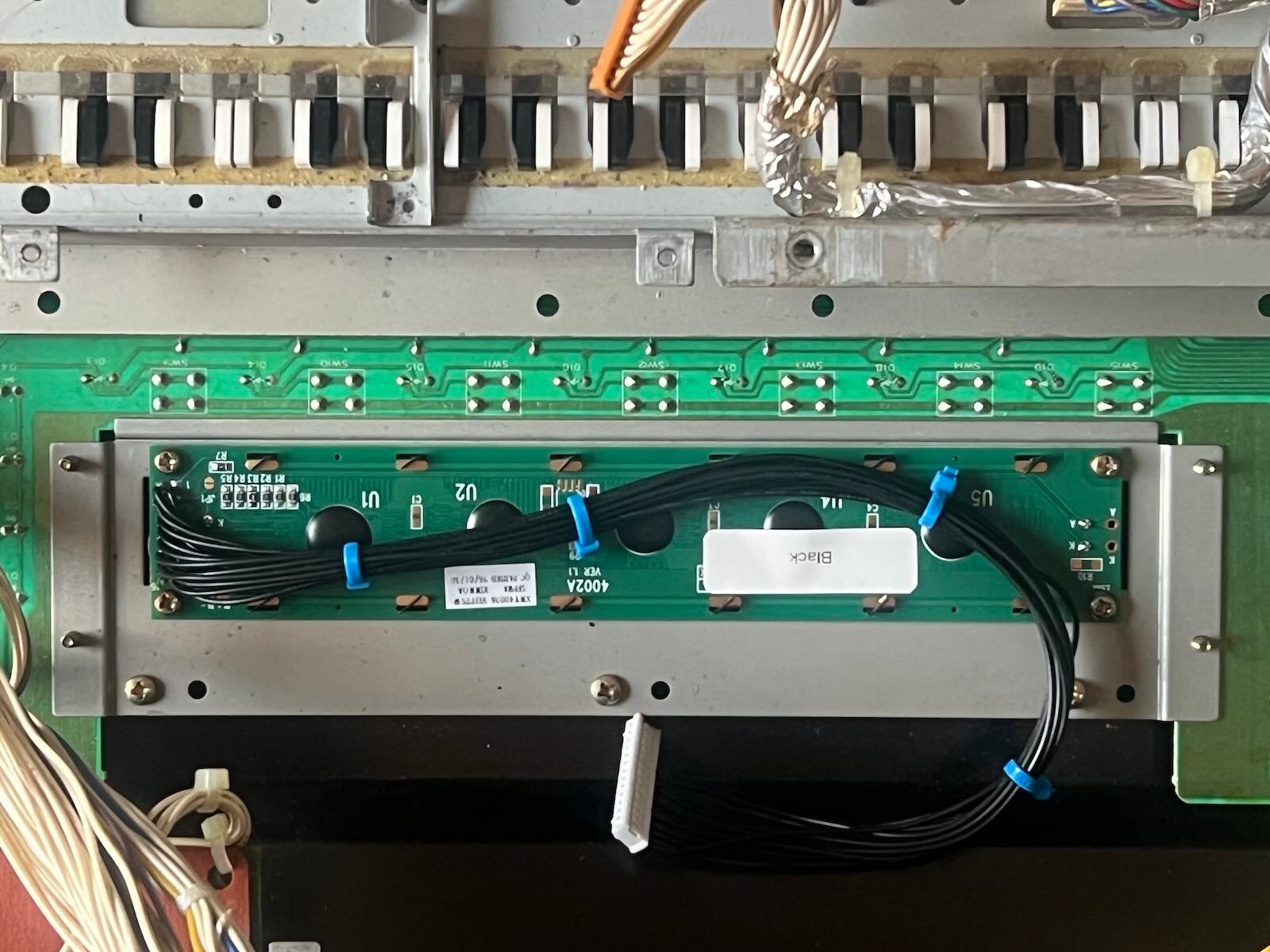

5) Put the new display in the same place. Reuse the 4 screws.

6) put the PCB back in place. Replug the connectors on it.

7) go back up.
