Casio CZ-3000 display kit installation

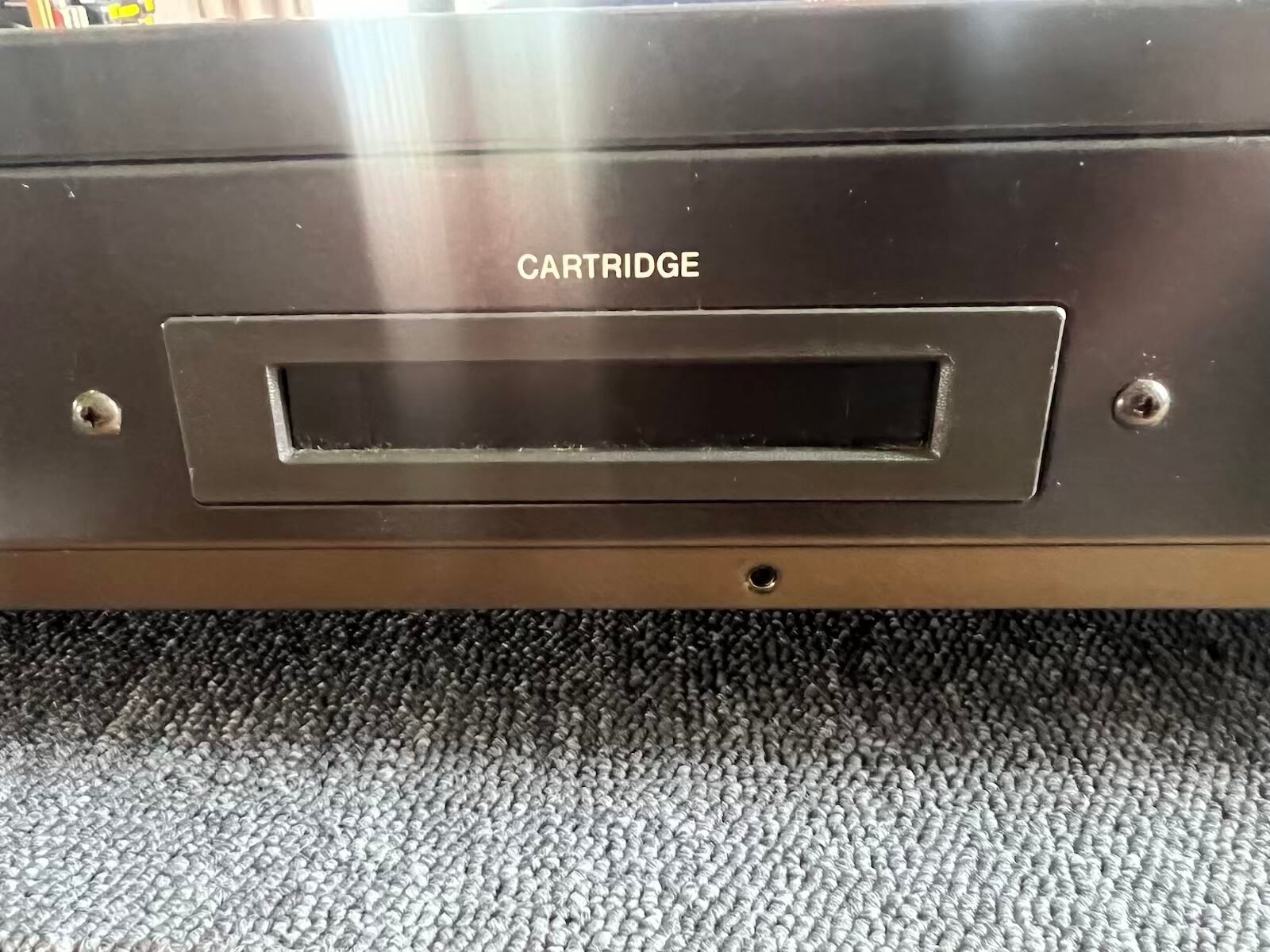

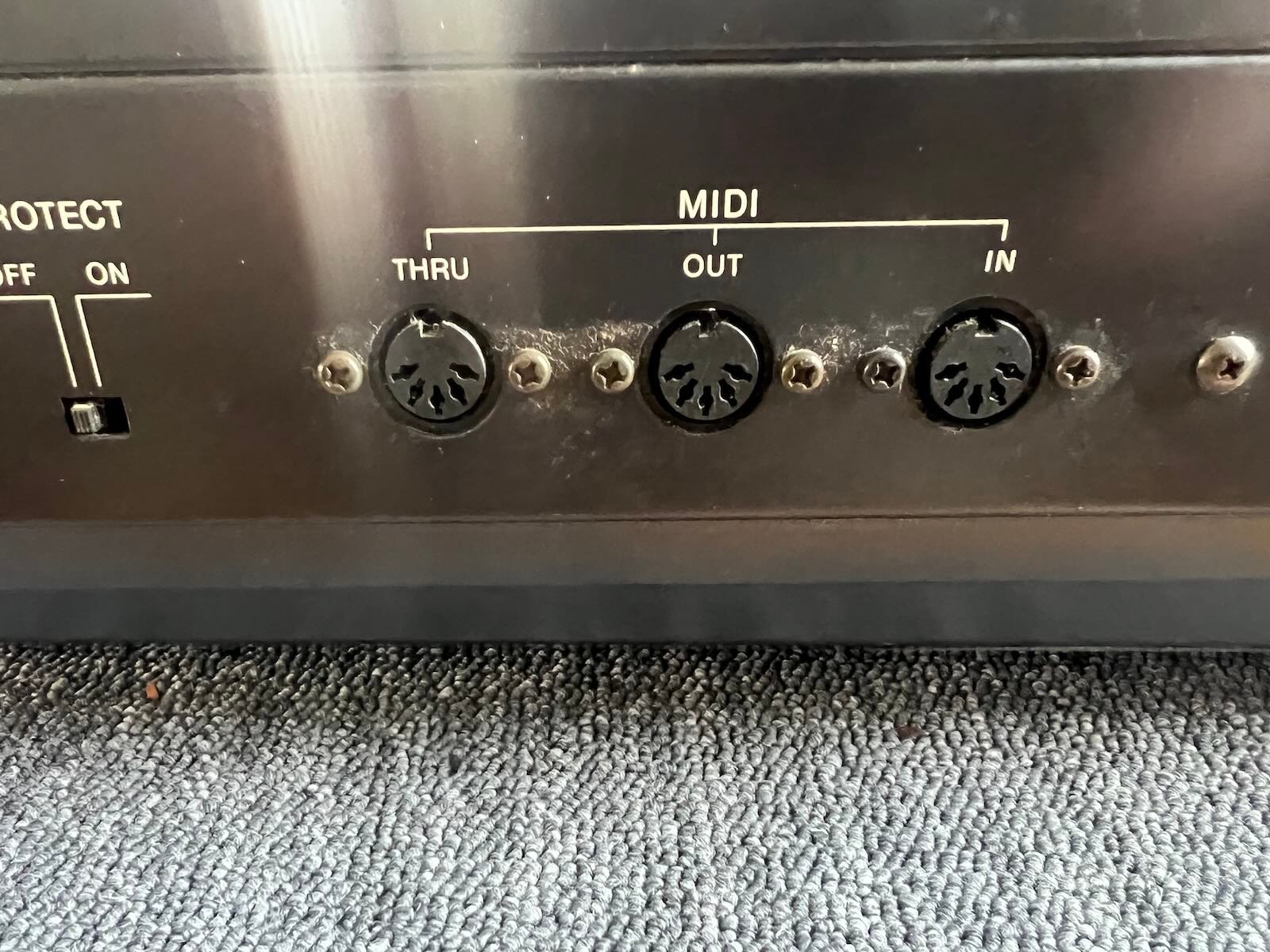

1) Dissassembly. There are 4 screws to remove on top and behind. The MIDI module and cartridge need to be removed to access the screen.

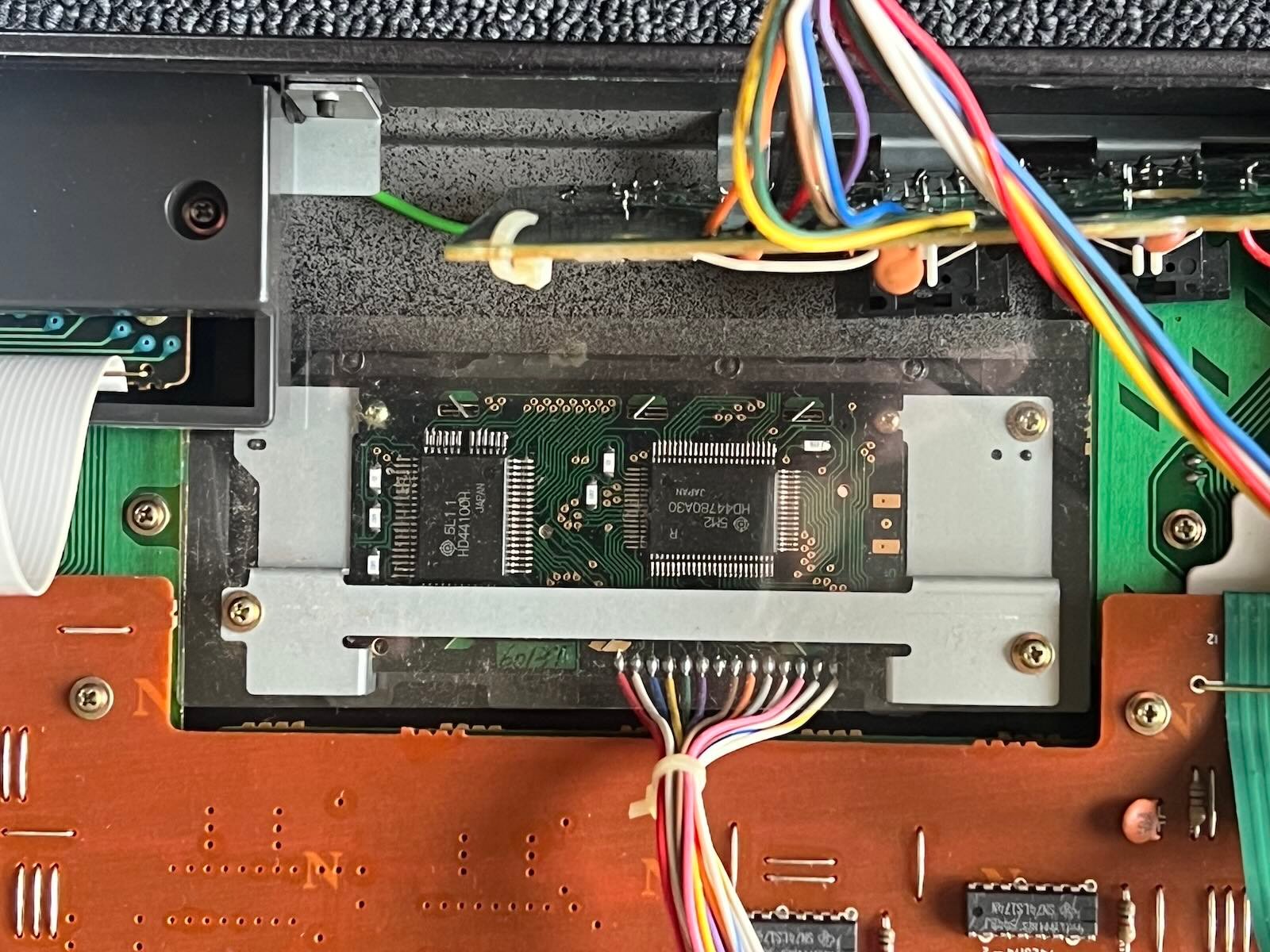

2) Remove the original screen assembly (Keep the 4 screws)

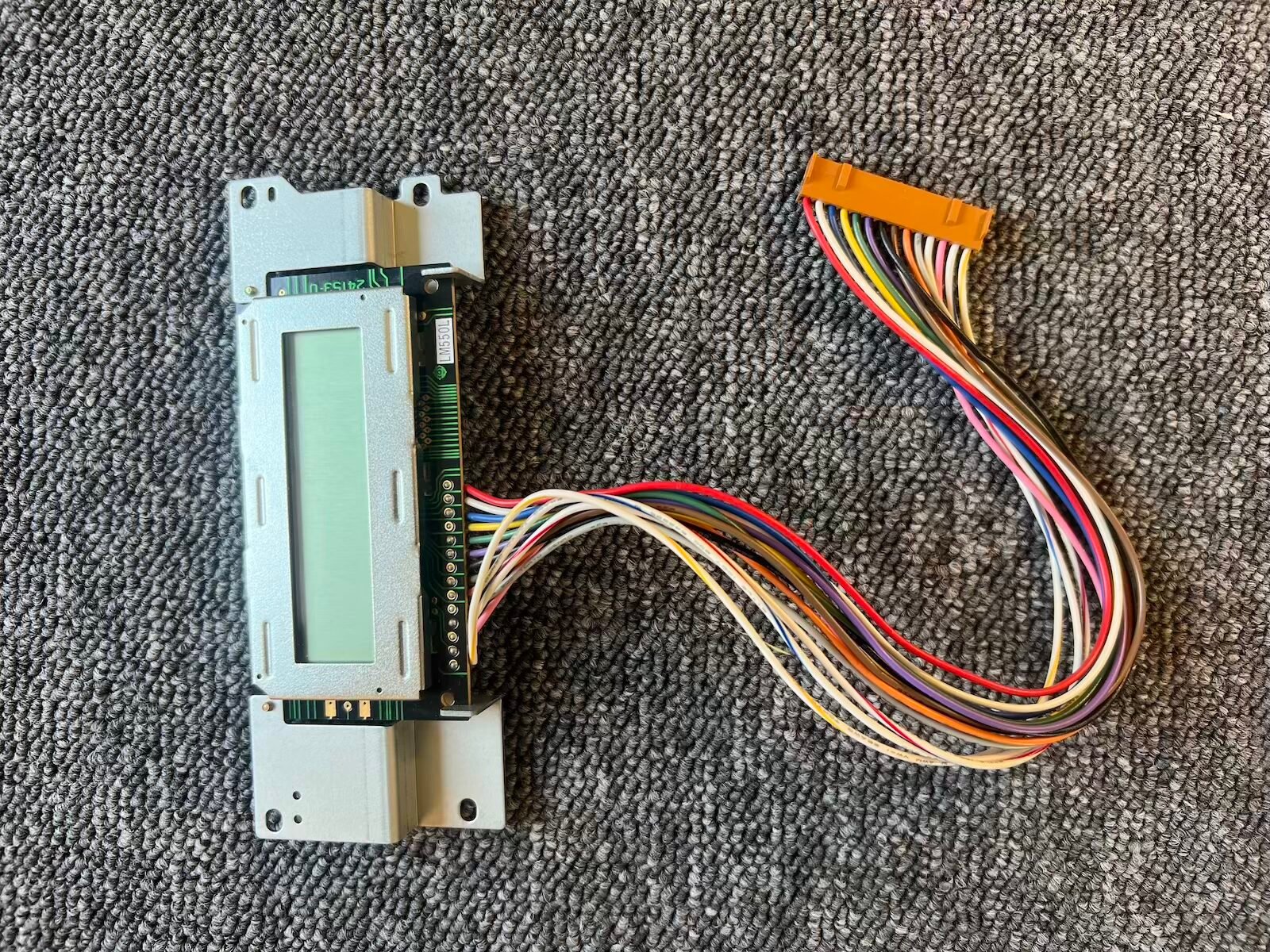

3) Place the new screen assembly in place of the old one, reuse the 4 screws.

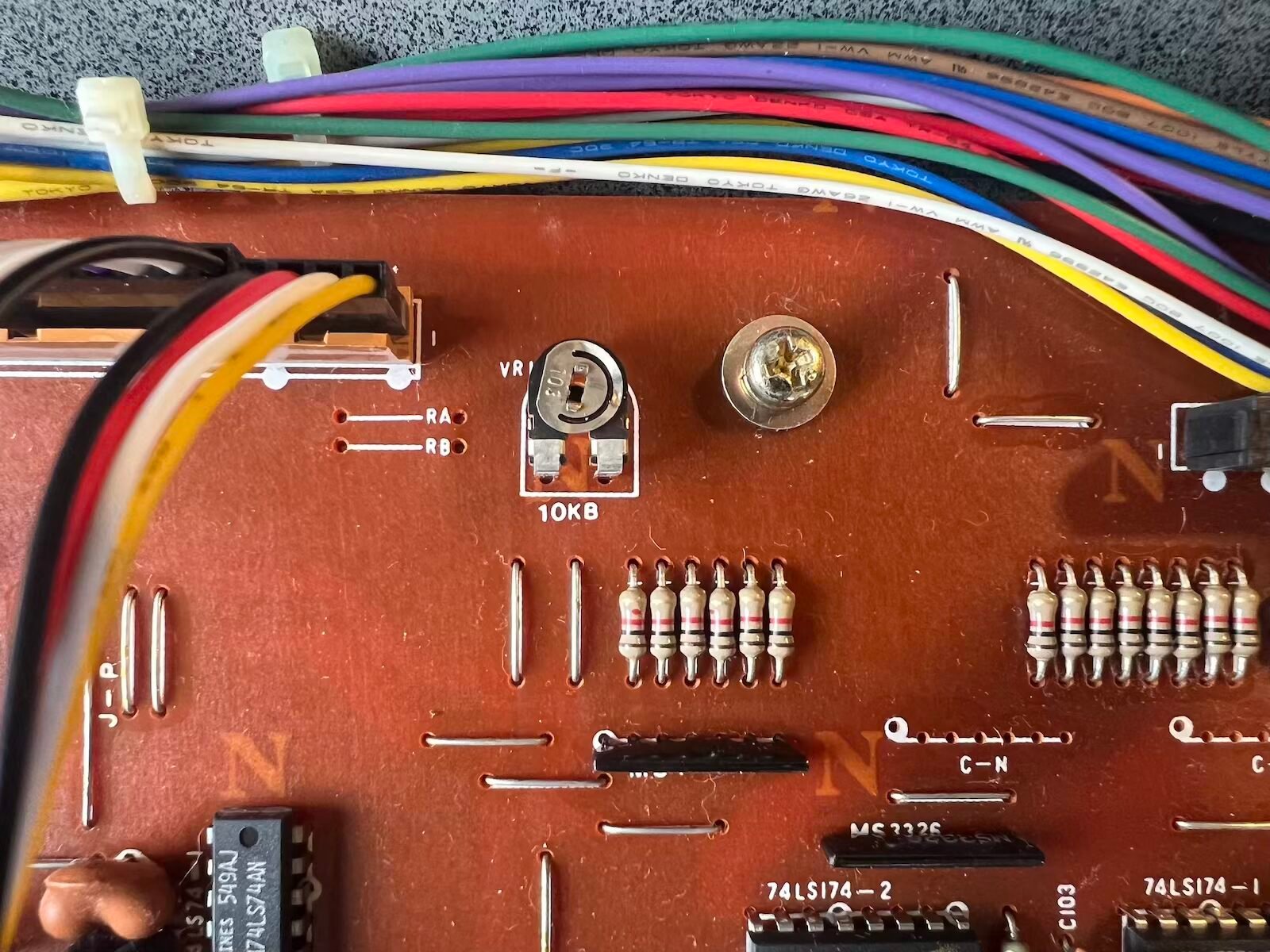

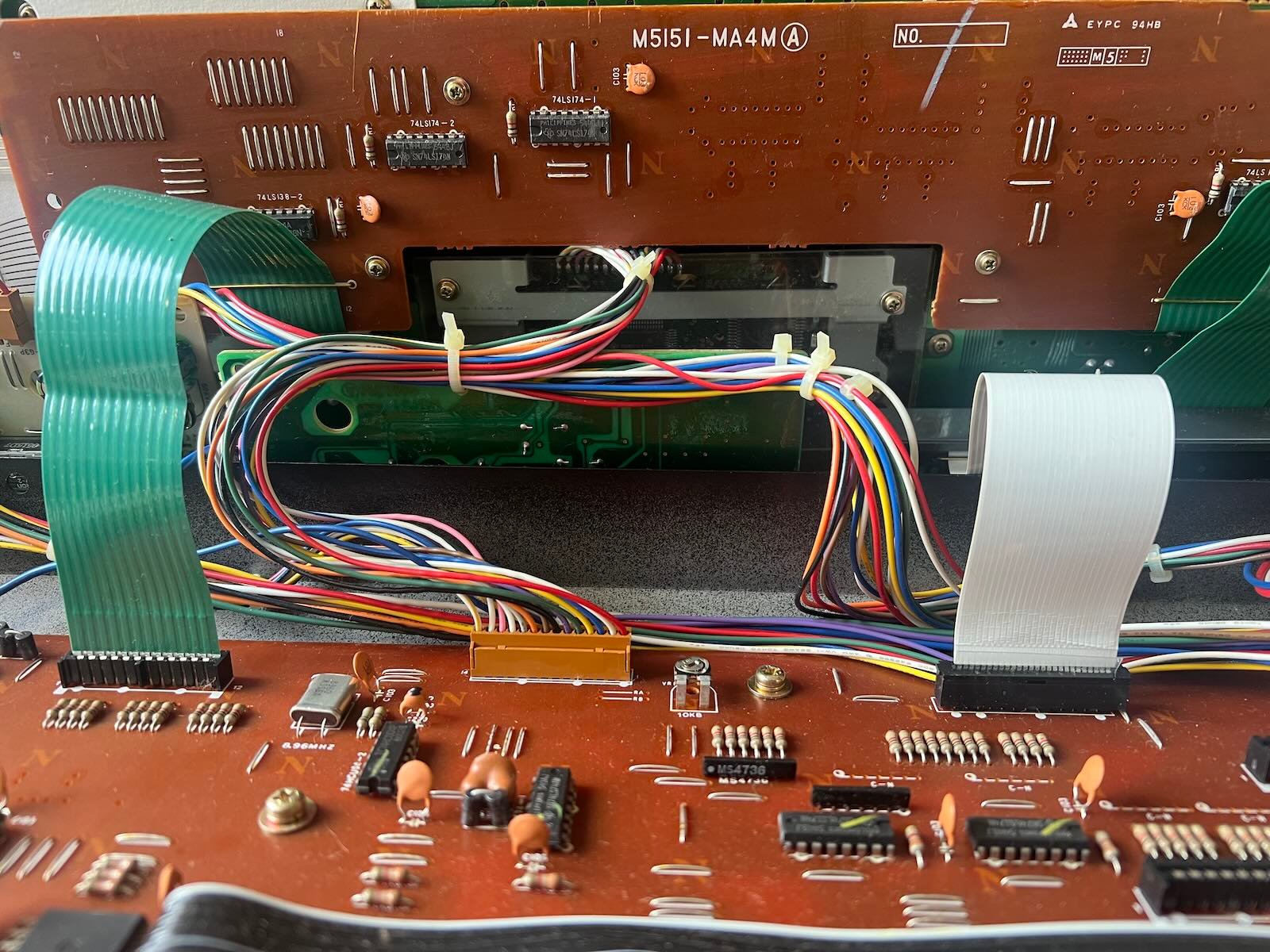

4) Connect the connector to the motherboard. If necessary, adjust the screen contrast on the motherboard (VR1).

5) Go back up
